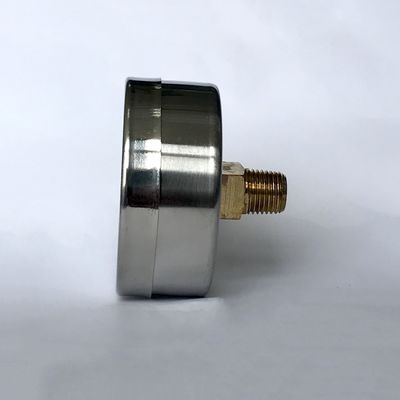

PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge

PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge

Large Image :  PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M01.02.050.F
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge

Description
Size: 63mm Mount: Back Connection
Pressure Range: 12 Bar Or Customized Bourdon Tube: Phosphor Bronze
Case Material: S.S 304 Lens: Glass
Movement: Copper Alloy Thread: 1/8" Or 1/4" PT, NPT, G, BSP
Accuracy: 2.5 Scale: Dual
High Light:

PT NPT Stainless Steel Pressure Gauge

,

G BSP Stainless Steel Pressure Gauge

,

63mm 160 psi pressure gauge

63mm Stainless Steel Pressure Gauge Commen Type 160 psi Brass Connection Manometer with Thread PT NPT G BSP



Description
Many gauges are exposed to harsh substances or chemicals including those that operate in the chemical, petrochemical, refining, power, and pharmaceutical processing industries. Such gauges must be corrosion-resistant; most likely, they be made of stainless steel. On the other hand, for pressure gauges that will encounter only non-corrosive fluids or gases, brass or bronze construction will probably be adequate.



Applications

Injection Molding Device, hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems, compressor



Special features

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 1000 bar



Specifications

Design

EN 837-1

Nominal size

63mm

Accuracy

2.5
Pressure range Customized

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C
Medium: +80 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale

Process connection

Brass

Pressure element

Bourdon tube, brass
Movement Copper alloy
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection thread
Surface mounting flange
Mounting bracket


Ordering information
Model / Dial size / Pressure Range / Process connection / Options
