Product Details:
|
| Size: | 100mm | Mount: | Panel Mounting |
|---|---|---|---|
| Pressure Range: | 30 Psi Or Customized | Case Material: | Stainless Steel 304 |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum, Dual Scale |
| Accuracy: | 1.6 | Liquid: | Silicone Oil |

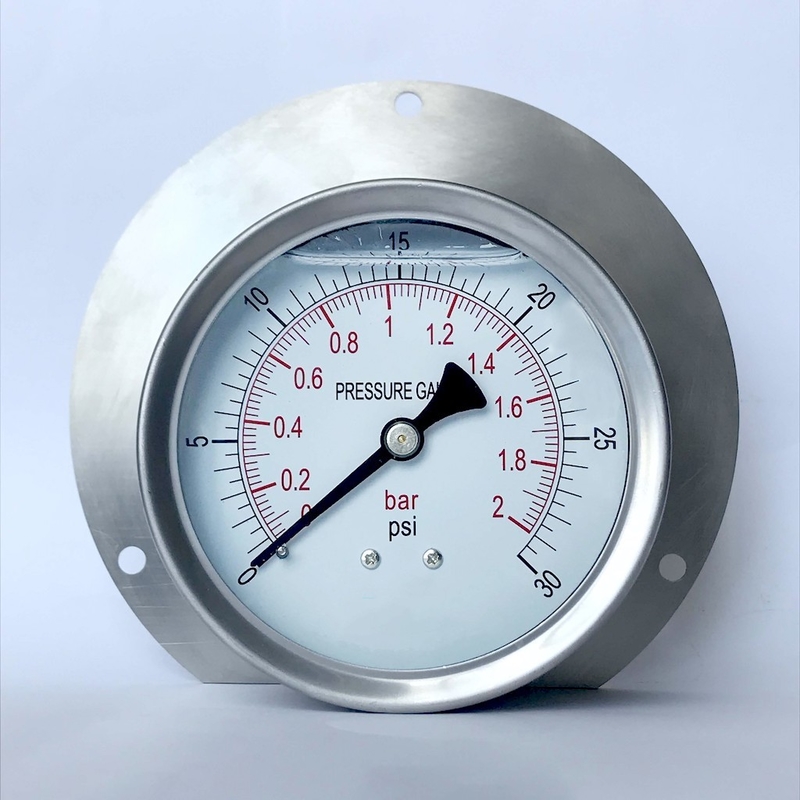

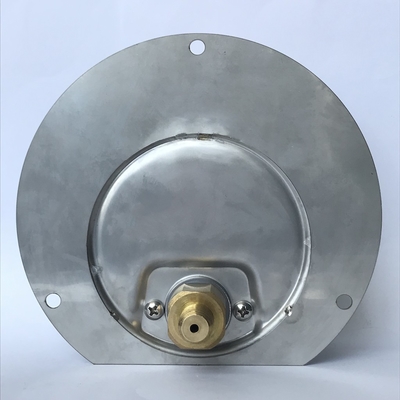

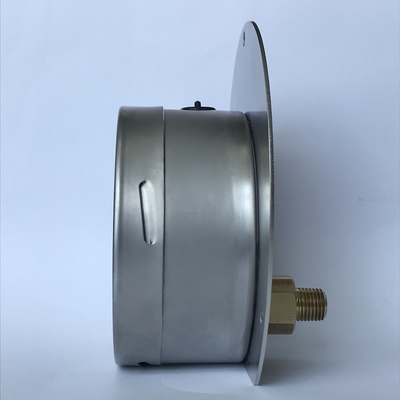

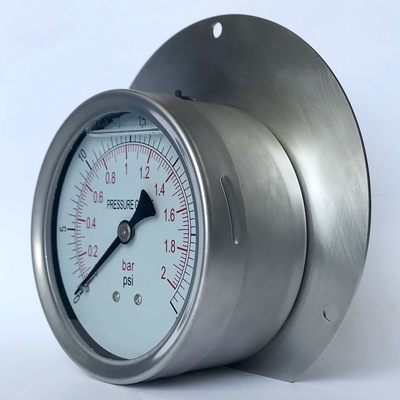

100mm 30 psi Shatter-proof Manometer with Flange Liquid-filled Pressure Gauge
Description
The type of liquid used to fill the gauge varies with the appli- cation. Although pure glycerine provides the best performance in most applications, each has its own requirements. Guidelines to help ensure that a fluid is properly matched to an application are:
if icing is a problem, use gauges filled with silicone oil or other comparable liquids. They have low viscosities evenat-60oC
if the system has electric accessories,suchas contacts, use insulating oils, and
if extreme temperature fluctuations are expected,use silicone oils
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 100mm |
Accuracy | 1.6, 1.0 |
| Pressure range | 30 psi (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, without pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
