70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge

Certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
China Wesen Technologies (Shanghai) Co., Ltd. certification
I'm Online Chat Now

70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge

70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge
70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge 70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge 70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge

Large Image :  70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M10.01.070.M
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge

Description
Deaign: EN837-1 Size: 70mm
Mount: Lower Pressure Range: 55 Bar Or Customized
Case Material: SS 304 Lens Material: PC, Safety Glass
Bourton Tube: Brass Movement: Brass
Dial: Aluminum Accuracy: 1.6
High Light:

70mm manifold pressure gauge

,

55 bar manifold pressure gauge

,

Brass Connection stainless steel pressure gauge

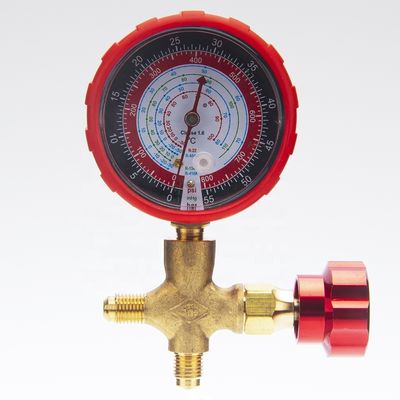

70mm 55 bar Brass Connection Refrigeration Pressure Gauge for Manifold



Description

All gauges show gauge pressure, but some technical information (that of refrigerant manufacturers, for example) will refer to absolute pressures. So exercise great care when you consult this type of literature if you want to avoid making mistakes.

Remember that at atmospheric pressure (that is 0 bar on the gauge), liquid water evaporates at +100°C, liquid ether evaporates at +35°C and liquid R22 evaporates at -42°C.

Our gauge is calibrated for R22, the temperature scale therefore indicates -42°C, which is the temperature of evaporation of R22 at the pressure measured by the gauge (that is 0 bar gauge).

If the gauge had been calibrated for ether, say, then at 0 bar, the temperature scale would have shown +35°C.



Applications

Measuring refrigerant ammonia pressure and temperature

Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system

Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

​​

Special features

Excellent load-cycle stability and shock resistance

All stainless steel construction

Ammonia refrigerant scales on dial



Specifications

Design

EN 837-1

Nominal size

70mm

Accuracy

1.6, 1.0
Pressure range 55 bar (customized)

Working pressure

63mm:

Steady: 3/4 x full scale value  Fluctuating: 2/3 x full scale value  Short time: full scale value

100mm:

Steady: full scale value  Fluctuating: 0.9 x full scale value  Short time: 1.3 x full scale value

Permissible temperature

Ambient:

-40 ... +60 °C - dry;

-20 ... +60 °C - glycerine filled

-40 ... +60 °C - silicone filled

Mediium:

+100 °C maximum

Ingress protection

IP66

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4%/10 K of the span

Process connection

Copper alloy

Pressure element

Copper alloy
Movement Copper alloy
Dial Aluminium
Pointer Aluminium
Case Stainless steel
Ring Steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket



Dimensions

70mm 55 Bar Manifold Pressure Gauge Brass Connection Stainless Steel Pressure Gauge 0



Size A B C D E J L M N S T W
63mm 69 54 32 62 13 3.6 7.5 85 75 6.5 1/4" 14
100mm 107 87 48 100 15.5 4.8 9 132 116 8 1/2" 22



Ordering information

Model / Dial size / Pressure Range / Process connection / Options
