Product Details:
|
| Size: | 40mm | Mount: | Axial Mount |
|---|---|---|---|
| Pressure Range: | 600 Bar Or Customized | Case Material: | 316 SS, 304 SS |
| Lens Material: | Instrument Glass | Bourton Tube: | Stainless Steel |
| Movement: | Stainless Steel | Socket: | Stainless Steel |
| Accuracy: | 2.5 | Liquid: | Silicone Oil, Glycerin |
| High Light: | Axial Mount Liquid Filled Pressure Gauge,600 bar Liquid Filled Pressure Gauge,1.5 Inches bsp pressure gauge |
||

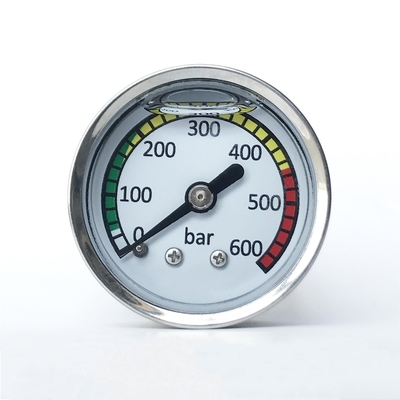

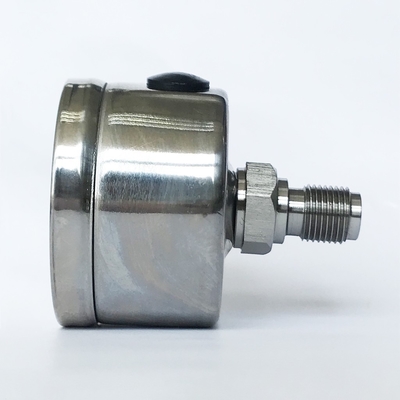

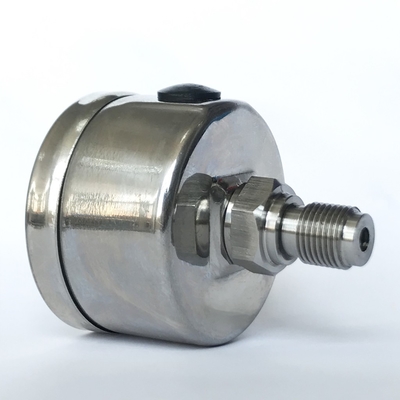

1.5 Inches 600 bar SS316 Wetted Parts 1/8" NPT Axial Mount Liquid Filled Pressure Gauge
Description
Pressure gauges in their most standard form are to give a visual reading only. This can sometimes be difficult as the mechanical system reacts very sensitively to the pressure reading. Therefore, the needle appears to be a blur as it struggles to hold steady. There are multiple solutions to this problem, including using a glycerine or silicon filling fluid to dampen the needle movement.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 40mm |
Accuracy | Acc.2.5 |
| Pressure range | 600 bar (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel |
Pressure element | Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, colorful, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/8 G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
