Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Center Back | Pressure Range: | 35 Psi Or Customized |
| Case Material: | Stainless Steel | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | Stainless Steel | Movement: | Stainless Steel |
| Dial: | Aluminum | Accuracy: | KL 1.6 |
| High Light: | Pool Pump 304 SS Pressure Gauge,2.5 Bar Oil Filled Pressure Gauge,304SS Back Differential Pressure Gauge |
||

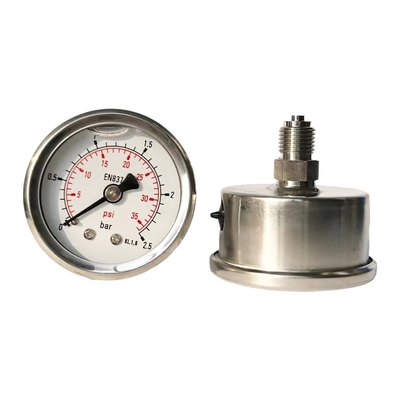

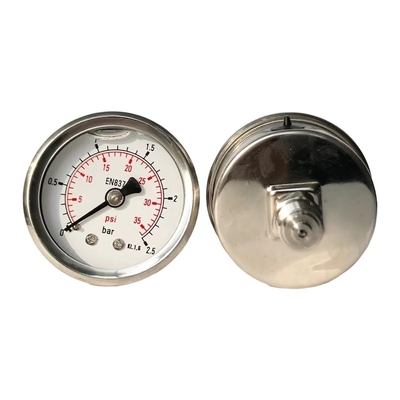

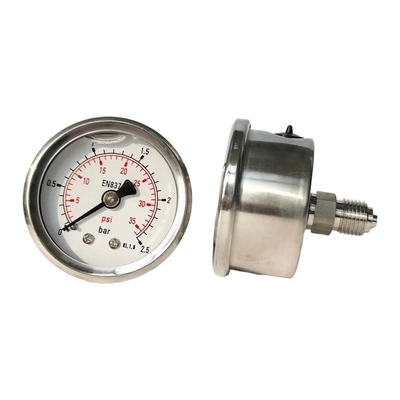

50mm Pressure Gauge for Pool Pump 304 SS 2.5 bar Back Mounting
Description
Pressure gauges aren’t terribly complicated devices, but they play a critical role in your filter’s performance. Pressure keeps the water moving through your filter system -- so when your water pressure is too high or too low, your water quality will suffer.
The first step in understanding your pressure gauge is knowing what is considered a normal PSI range for your filter. For pool owners, the normal range is around 10 PSI; check your owner’s manual for more information.
Applications
For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction, Pressure Gauge Hydraulic Press
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
1.6, 1.0, 2.5 |
|
Pressure range |
35 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
|
Movement |
Stainless steel |
|
Dial |
Aluminium, colorful, without pointer stop pin |
|
Pointer |
Aluminium |
|
Case |
Stainless steel |
|
Ring |
Bayonet ring, stainless steel |
|
Window |
Plastic, glass |
|
Unit |
bar, psi, kg/cm2, kPa, MPa |
|
Thread |
G, BSP, PT, BSPT, NPT |
|
Options |
Other process connection |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
