| Deaign: | EN837-1 | Size: | 100mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 10 Bar Or Customized |
| Case Material: | Stainless Steel | Lens Material: | PC Or Glass |
| Bourton Tube: | Phosphor Bronze | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 1.0 |
| High Light: | 100mm pressure gauge stainless steel,8 Bar pressure gauge stainless steel,Brass Internals Manometer ss pressure gauge |
||

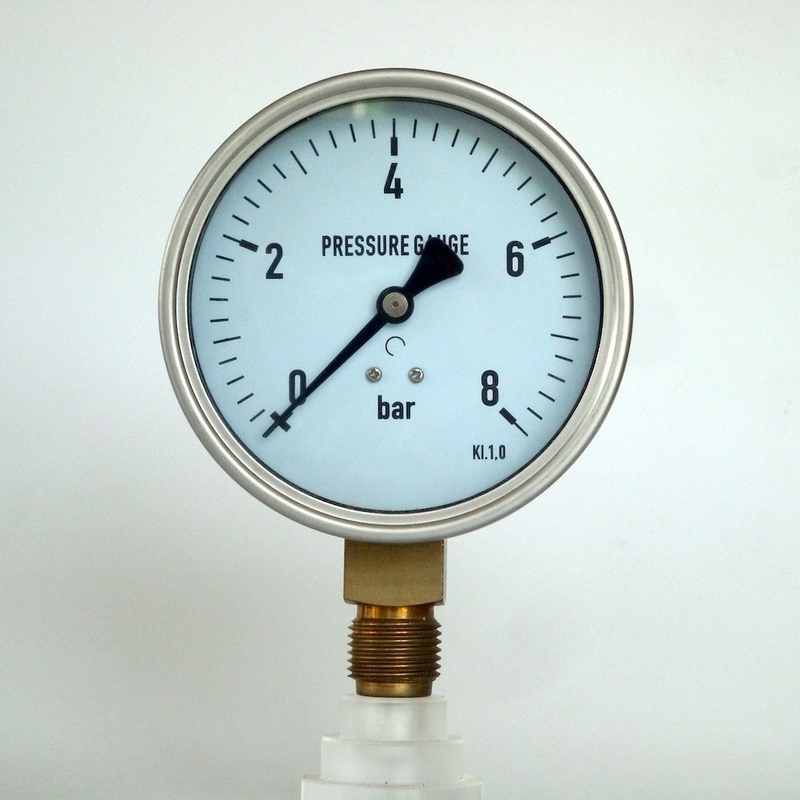

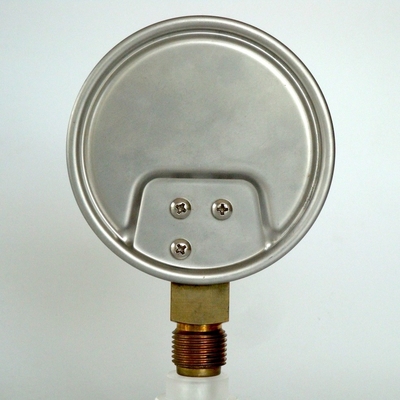

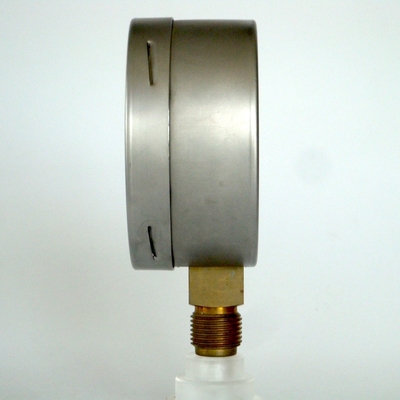

100mm Stainless Steel Case Pressure Gauge 8 Bar Brass Internals Manometer
Description
The mechanical model M01 Bourdon tube pressure gauge is constructed with a case from stainless steel and wetted parts from copper alloy.
The model M01 meets the requirements of the international industry standard EN 837-1 for Bourdon tube pressure gauges.
Frequent measuring points are found in the machine building, plant construction and building services industries. The model M01 can also be used in refrigeration applications. The cases are available in nominal sizes of 40mm, 50mm, 63mm, 100mm and 160 mm and fulfil IP54 ingress protection. With an accuracy class of 1.0, this pressure gauge is suitable for the process industry. We provide pressure gauges with reliable quality and reasonable price.
Applications
Suitable for gaseous or liquid media that will not obstruct the pressure system
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 0~8 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -40 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, white, without pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options |
Other process connection thread |
Dimensions
Model M02.01, lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | ||||||||||
| a | b | b1 | b2 | D1 | D2 | e | f | G | h | SW | ||
| 100 | 15.5 | 49.5 | 49.5 | 83 | 101 | 100 | 17.5 | 30 | G1/2 | 87 | 22 | 0.6 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
FAQ
Q1. Can I have a sample order for pressure gauge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15 days for Sample preparing, 25 working days for mass production.
Q3. Do you have any MOQ limit for pressure gauge order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pressure gauge?
A: Firstly let us know your requirements or application. Provide Model, Dial size, Pressure range, Process connection, Options.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pressure gauge product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.04%.
Secondly, during the guarantee period, we will send new manometers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
