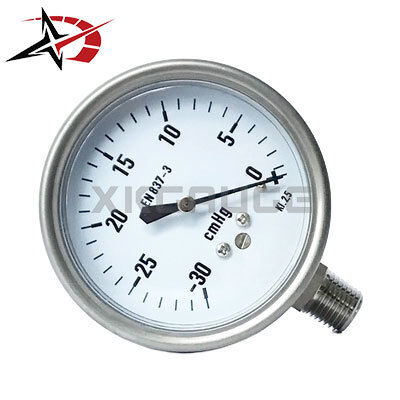

-30 CmHg Low Pressure Gauge 316 SS Bellows Manometer Radial Mount

Product Introduction

With a measuring range of -30~0 cmHg and a 63mm dial size, the gauge is ideal for laboratory equipment, medical devices, environmental monitoring systems, filter monitoring, cleanroom applications, and industrial process control where conventional Bourdon tube gauges cannot provide sufficient sensitivity.

The SUS316 pressure element offers excellent corrosion resistance, while the capsule mechanism enables accurate low-pressure measurement and full vacuum operation. The gauge is designed with 10-times overpressure protection and front zero adjustment for enhanced reliability and long-term performance.

Technical Specifications

Working Principle

Unlike standard Bourdon tube gauges, capsule pressure gauges utilize two thin-walled diaphragms welded together to form a pressure-sensitive capsule element. When low pressure or vacuum is applied, the capsule expands or contracts in proportion to the pressure variation.

The movement is mechanically transmitted to the pointer through a precision gear mechanism, providing highly sensitive and accurate indication of low pressure and vacuum values.

This measuring principle allows accurate monitoring of pressure levels that are too small for conventional pressure gauges to measure effectively.

Key Features

• Accurate low-pressure and vacuum measurement
• Full vacuum safe operation
• 10× overpressure protection
• Front zero adjustment
• Excellent sensitivity for small pressure changes
• 63mm compact dial size
• Radial mounting configuration
• Long-term measurement stability

Product Advantages

• Designed specifically for low-pressure applications
• Higher sensitivity than Bourdon tube gauges
• Reliable vacuum monitoring
• Enhanced safety under accidental overpressure
• Stable and repeatable measurements
• Reduced maintenance requirements
• Suitable for laboratory and industrial environments
• Wide customization options available
• Long operational lifespan

Applications

Medical Equipment

• Medical vacuum systems
• Respiratory equipment
• Gas monitoring systems

Laboratory Systems

• Vacuum chambers
• Research equipment
• Analytical instruments

Environmental Monitoring

• Air filtration systems
• Cleanroom monitoring
• Ventilation control systems

Industrial Process Control

• Gas distribution systems
• Filter monitoring
• Pressure balancing systems
• Vacuum process equipment

Industries Served

• Medical Industry
• Pharmaceutical Industry
• Laboratory Equipment Manufacturing
• Environmental Engineering
• Semiconductor Industry
• HVAC Systems
• Food Processing Industry
• Chemical Processing Industry
• Industrial Automation
• Research Institution

FAQ

What media can be measured?

Dry, clean, and non-corrosive gases.

Can the gauge measure vacuum?

Yes. The gauge is specifically designed for vacuum and low-pressure applications.
