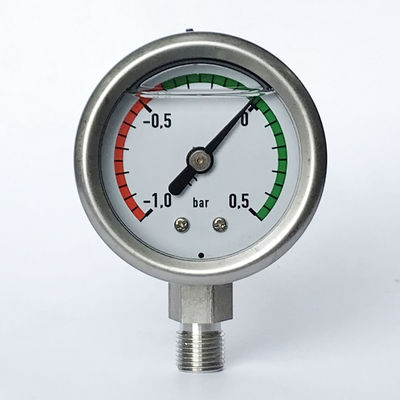

40mm All Stainless Steel Pressure Gauge 0.5 Bar Vacuum Manometer
Description
The model M02 Bourdon tube pressure gauge has very high quality and has been designed for process industry, especially for the aggressive environments. The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments. Scale ranges of 0 … 0.6 to 0 … 1,600 bar [0 ... 10 to 0 ... 20,000 psi] ensure the measuring ranges required for a wide variety of applications. The model M03 with liquid-filled case is suitable for high dynamic pressure loads and vibrations.
Applications
For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
Design |
EN 837-1 |
Nominal size |
40mm |
Accuracy |
1.6, 1.0 |
Pressure range | Vacuum (customized) |
Pressure limitation |
Steady: 3/4 x full scale value |
Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection |
Stainless steel, SUS 304, SUS 316 |
Pressure element |
Stainless steel, C-type or helical type |
Movement | Stainless steel |
Dial | Aluminium, colorful, without pointer stop pin Black lettering |
Pointer | Aluminium |
Case | Stainless steel |
Ring | Bayonet ring, stainless steel |
Window | Plastic, glass |
Unit |
bar, psi, kg/cm2, kPa, MPa |
Thread | G, BSP, PT, BSPT, NPT |
Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Model M03.01, lower mount (radial)
A=40mm, B=24.7mm, H=44.5mm
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
