Product Details:
|
| Size: | 50mm | Mount: | Axial |
|---|---|---|---|
| Pressure Range: | 12 Bar Or Customized | Color: | White |
| Case Material: | SS 304 | Lens: | Glass |
| Movement: | Copper Alloy | Thread: | 1/8" Or 1/4" PT, NPT, G, BSP |
| Accuracy: | 2.5 | Bracket: | Butterfly Flange |
| High Light: | 50mm npt pressure gauge,160 psi npt pressure gauge,Butterfly Flange 12 bar pressure gauge |
||

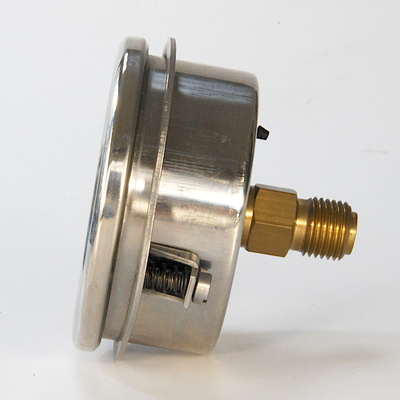

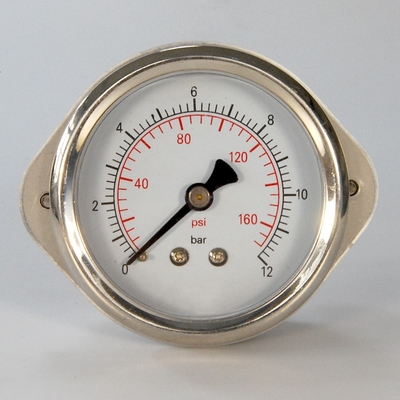

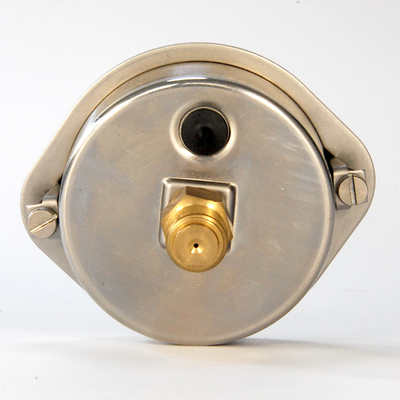

50mm Stainless Steel Case Pressure Gauge 12 bar 160 psi Axial Connection Manometer with Butterfly Flange PT NPT G BSP
Description
The dial has an aluminum black pointer. The lens for the 1.5", 2", and 2.5"diameter dials is polycarbonate for high impact resistance. The lens for the 4" diameter dial is glass for strength and clarity. The gauge measures pressure with a dual scale of either psi/kPa or Hg. vacuum/kPa. The gauge is accurate to + or - 3/2/3% over the entire range of the gauge, American Society of Mechanical Engineers (ASME) B40.100 Grade B accuracy class. The male connection is mounted on the bottom or center back of the gauge and has either a 1/4" NPT (National Pipe Thread) or 1/2" NPT rate. The bourdon tube is phosphor bronze, the movement is brass, and the welding is silver alloy. The over-pressure limit is 25% of full scale value. The working pressure is a maximum of 75% of full scale value. The operating temperature is -40 to 150 degrees F (-40 to 65 degrees C). This pressure gauge is suitable for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, and air compressors.
Applications
Injection Molding Device, hydraulic
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems, compressor
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 12 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -40 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
|
Process connection |
Brass |
|
Pressure element |
Bourdon tube, brass |
| Movement | Copper alloy |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options |
Other process connection thread |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
