Product Details:
|
| Size: | 150mm | Mount: | Radial Direction |
|---|---|---|---|
| Pressure Range: | 10 Bar Or Customized | Ring: | Bayonet |
| Case Material: | SS 316 | Window: | Safety Glass |
| Bourton Tube: | SS 316L | Movement: | SS 304 |
| Liquid: | Si-oil | Deaign: | EN837-1 |
| High Light: | All Stainless Steel 150 psi pressure gauge,10 bar 150 psi pressure gauge,CL 1.0 Silicone oil filled manometer |
||

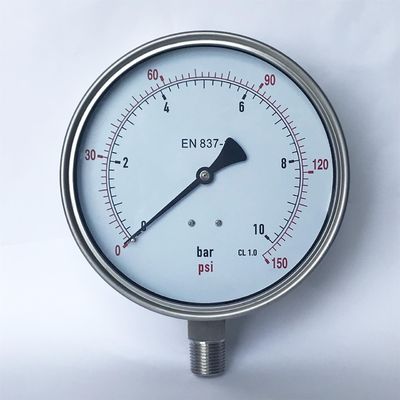

150mm All Stainless Steel Pressure Gauge 150 psi 10 bar CL 1.0 Silicone Oil Filled Manometer for Industrial Application
Description
Pressure gauges have been used in fluid power systems for well over a hundred years, so it might be a surprise that pressure gauge designs continue to evolve. The evolution of pressure gauges for fluid power applications has, generally, been an increase in application specific features. For instance, pressure gauges are now more routinely designed with hydraulic friendly pressure connections (such as SAE/Metric straight threads) to prevent system leaks. Analog gauges with custom scales are more common and digital pressure gauges with customizable firmware allow process measurement of pressure-based measurement of leaks or other parameters like torque, load, force and hardness.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics
Machine building and general plant construction
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Scale ranges up to 0 ... 1600 bar
|
Design |
EN 837-1 |
|
Nominal size |
150mm |
|
Accuracy |
1.0 |
| Pressure range | 150 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
SS 316L, H-type bourdon tube |
| Movement | SS 304 |
| Dial | Aluminium, white, with pointer stop pin Black and red lettering, dual scale |
| Pointer | Aluminium |
| Case | SS 304 |
| Ring | Bayonet ring, stainless steel |
| Window | PC, glass, safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
