Product Details:
|
| Size: | 63mm | Mount: | Bottom |
|---|---|---|---|
| Pressure Range: | 2500 MmWC Or Customized | Case Material: | 304SS |
| Lens Material: | Plastic | Bellows: | 316SS |
| Movement: | 304ss | Dial: | Aluminum |
| Accuracy: | 1.6 | Deaign: | EN837-3 |
| High Light: | 304 ss pressure gauge,63mm ss pressure gauge,2500 mmWC Bellows Manometer |
||

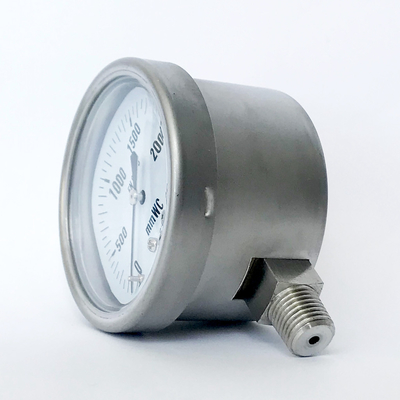

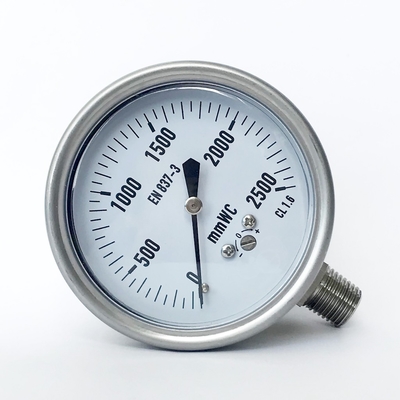

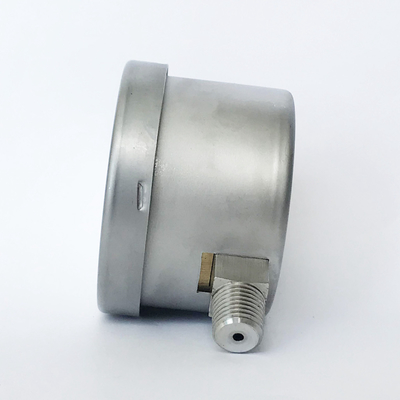

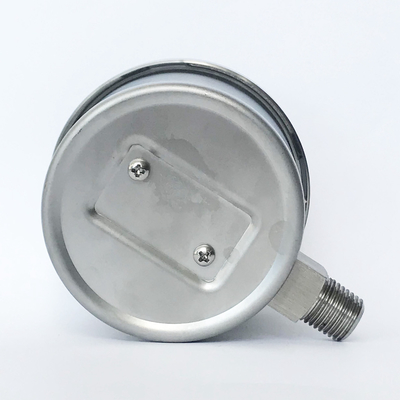

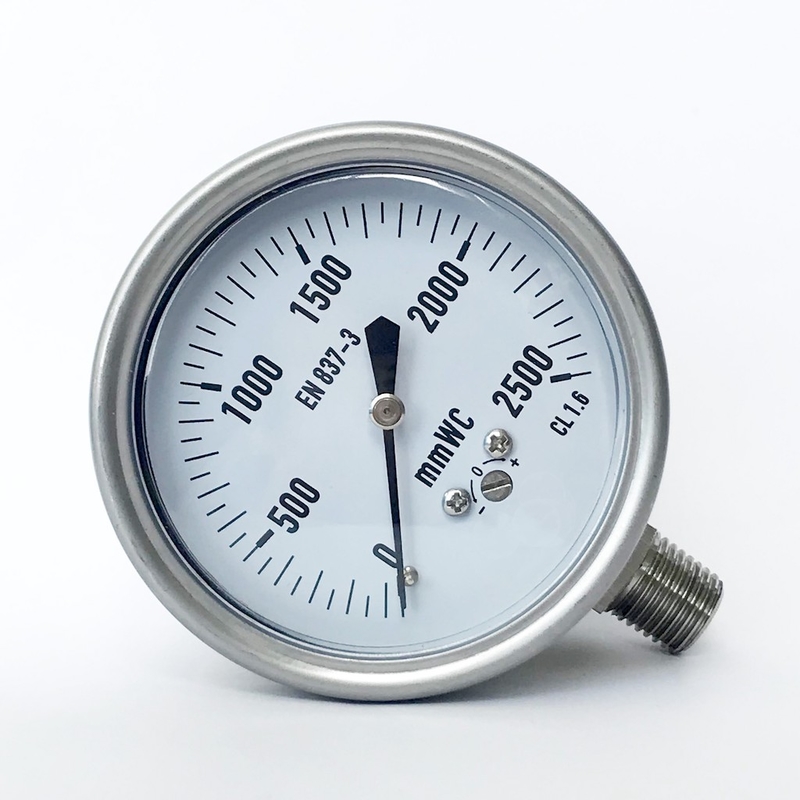

63mm Low Pressure Gauge 2500 mmWC Bellows Manometer Stainless Steel Capsule Pressure Gauge
Description
WESEN type M08 low pressure process gauges offer accurate read- ings in harsh ambient conditions. They are able to measure the pressure of gaseous media from as low as 10” H2O to 275” H2O (10 psi) or other equivalent units of pressure or vacuum. The finely polished nickel-silver pinion gear and shaft of the movement ensure repeatable accuracy.
Applications
Low pressure gauge for applications in a controlled environment
Low pressure pneumatic systems
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
|
Design |
EN 837-3 |
|
Nominal size |
63mm |
|
Accuracy |
± 1.6 of full scale value |
| Pressure range | 2500 mmWC (customized) |
| Standard ranges |
2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) 2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges |
| Standard scales |
InH2O/mmH2O oz/sq.in/mmH2O oz/sq.in/InH2O PSI |
|
Pressure limitation |
Steady: full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
|
Process connection |
SS |
|
Pressure element |
SS |
| Movement | SS |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options |
Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
