Product Details:
|
| Size: | 160mm | Mount: | Bottom, Radial |
|---|---|---|---|
| Pressure Range: | 0.6 MPa Or Customized | Case Material: | Stainless Steel |
| Lens Material: | Instruments Glass | Bourton Tube: | SS 316 |
| Movement: | SS 304 | Dial: | Aluminum, White |
| Accuracy: | 0.4 | Deaign: | EN837-1 |
| High Light: | EN837-1 Precision Pressure Gauge,0.6 MPa Precision Pressure Gauge,9 bar Radial Pressure Gauge |
||

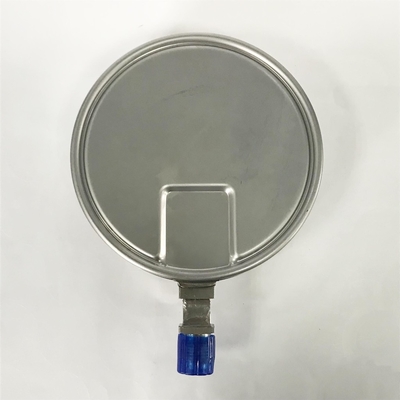

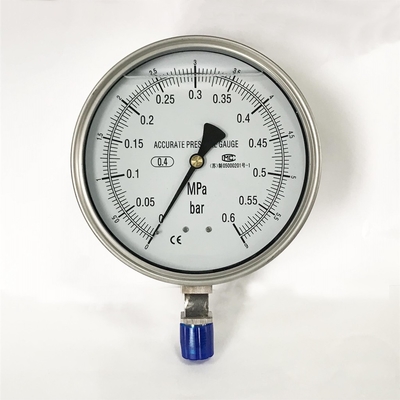

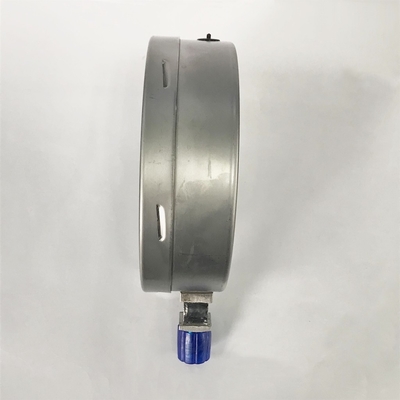

160mm Stainless Steel Test Manometer 9 bar 0.6 MPa Precision Pressure Gauge
Description
The type M13 is an industrial type gauge suitable for corrosive environments where the fluid medium will not clog the connection or corrode 316 SS material. Solid front, blow-out back case design meets safety requirements of ASME B40.100.
Applications
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
Precision measurement in laboratories
High-accuracy pressure measurement, testing of indus- trial type pressure gauges
Increased safety requirements for personal protection
With liquid-filled case for applications with high dynamic pressure loads or vibrations
Special features
Safety pressure gauge with solid baffle wall designed in compliance with the requirements and test conditions of EN 837-1
Completely from stainless steel
Knife edge pointer for optimal accuracy of reading
Wear-resistant precision movement from stainless steel
Scale ranges from 0 … 0.6 to 0 … 1,600 bar [0 ... 10 psi to 0 ... 20,000 psi]
|
Design |
EN 837-1 |
|
Nominal size |
160mm |
|
Accuracy |
0.6, 0.4, 0.25 |
| Pressure range | 0.6 MPa(customized) |
|
Working pressure |
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Permissible temperature |
Ambient: -40 ... +60 °C - dry; -20 ... +60 °C - glycerine filled -40 ... +60 °C - silicone filled Mediium: +100 °C maximum with filled instruments +200 °C maximum with unfilled instruments |
|
Ingress protection |
IP66 |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel 316L |
| Movement | Stainless steel |
| Dial | Aluminium |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Bayonet ring, stainless steel |
| Window |
Laminated safety glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Scale range | Dimensions in mm | |||||||
| a | b | D1 | D2 | e | G | h | SW | |
| < 100 bar (1500 psi) | 27 | 65 | 161 | 159 | 17.5 | 1/2" | 118 | 22 |
| ≥ 100 bar (1500 psi) | 41.5 | 79 | 161 | 159 | 17.5 | 1/2" | 118 | 22 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
