Product Details:
|
Dial Size: | 100mm | Mount: | Radial Direction |
---|---|---|---|
Pressure Range: | 1 MPa Customized | Case Material: | SUS 304 |
Lens Material: | Glass | Pressure Element: | SUS 316 |
Movement: | SUS 304 | Dial: | Aluminum, White |
Color: | Metallic | Deaign: | EN837-1 |
High Light: | SUS 304 flange mount pressure gauge,1 MPa flange mount pressure gauge,100mm diaphragm seal type pressure gauge |

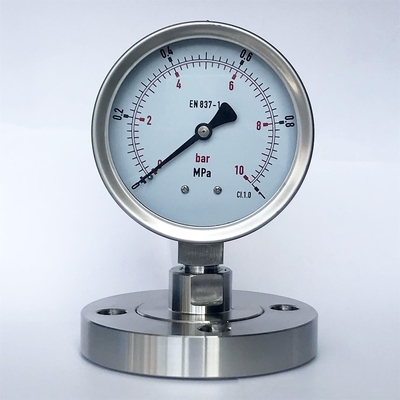

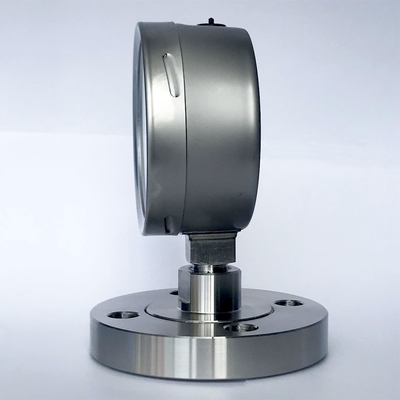

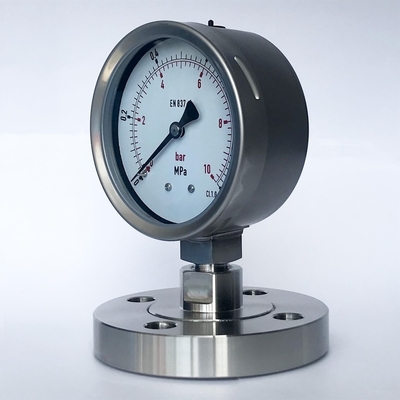

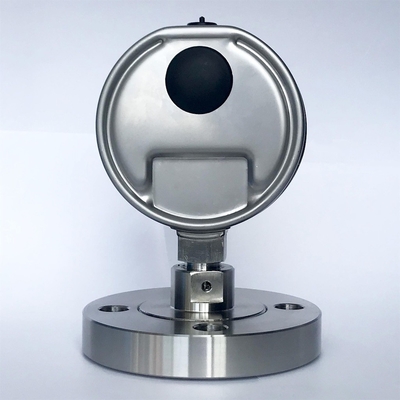

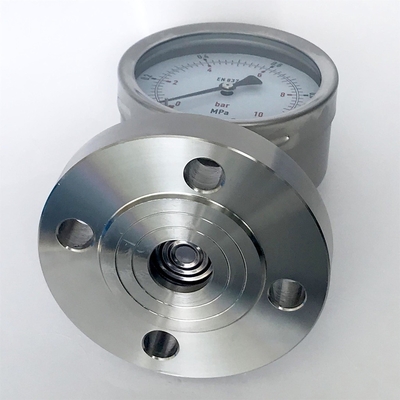

100mm Dial 10 bar 1 MPa Stainless Steel Diaphragm Seal Pressure Gauge Flange Mounting
Description
Bourdon tube pressure gauges are fabricated according to certain standards. There are, among others, the European standard EN 837-1 and the US ASME B40.100. These standards provide terminology and definitions, dimensions, safety, construction and installation issues, test procedures and general recommendations.
Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries
Mechanical pressure display on pipelines, fermenters, bioreactors and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media
Special features
Safety via mechanical pressure transmission
Case and wetted parts in hygienic design
Suitable for SIP and CIP, autoclavable version available
Easy zero point setting
High overload safety
Design |
EN 837-1 |
Nominal size |
100mm |
Accuracy |
1.0 |
Pressure range (bar) |
0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16, -1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15 |
Pressure limitation |
Steady: Full scale value Fluctuating: Scale range <4 bar: Full scale value Scale range ≥4 bar: 2/3 x full scale value |
Overload safety |
2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection 5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection |
Vacuum resistance |
Without Vacuum resistance to -1 bar Depending on the scale range, vacuum resistance is provided or available on request |
Permissible temperature |
Ambient: -20 ... +60 °C Mediium: -20 ... +150 °C CIP and SIP: 150 °C continuously for wetted parts Autoclavable version, max. 134 °C, ≤ 20 minutes |
Ingress protection |
IP54 |
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value |
Process connection |
Stainless steel, SUS 304, SUS 316 |
Pressure element |
Diaphragm element, welded to the process connection |
Movement | SUS 304 |
Dial | Aluminium, white, with pointer stop pin |
Pointer | Aluminium |
Case | Stainless steel |
Ring | Stainless steel |
Window | Plastic, glass, safety glass |
Unit |
bar, psi, kg/cm2, kPa, MPa |
Options | Other process connection thread Surface mounting flange Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
