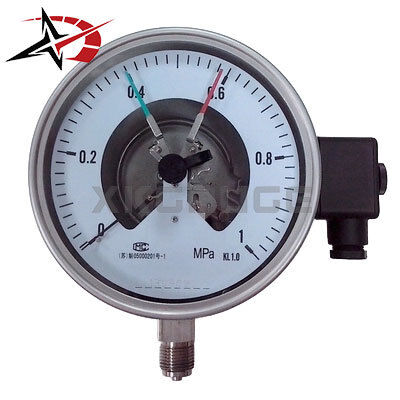

150mm Bottom Mount Pressure Gauge 1 MPa

Product Introduction

Featuring a large 150mm dial with a glass viewing window, this pressure gauge offers excellent readability for equipment panels and plant monitoring systems. The KL 1.0 accuracy class supports applications requiring precise pressure indication in industrial automation, process control and machinery manufacturing. The gauge is suitable for gaseous and liquid media that are not highly viscous, non-crystallizing and compatible with the wetted materials.

Key Features

• 150 mm large dial for easy reading
• Bottom mount connection configuration
• Stainless steel case and movement
• Glass or safety glass window options
• Suitable for industrial process monitoring
• Mechanical operation without power supply

Technical Specifications

Applications

• Industrial process control systems
• Plant monitoring and equipment supervision
• Pneumatic and hydraulic equipment
• Machinery manufacturing applications
• Industrial automation systems
• PLC-integrated monitoring solutions

Product Advantages

1. Large Dial Visibility

The 150mm dial size provides clear pressure indication and improves readability in control rooms and industrial environments.

2. Durable Stainless Steel Construction

Stainless steel components help improve resistance to industrial operating conditions.

3. Reliable Mechanical Operation

The Bourdon tube mechanism provides stable pressure indication without requiring electrical power.

Working Principle

The Bourdon tube deforms elastically in response to internal pressure changes. This movement is transferred through the mechanical movement system, driving the pointer across the dial to display the corresponding pressure value.

FAQ

What is a bottom mount pressure gauge?

A bottom mount pressure gauge features a process connection located at the bottom of the case, making it suitable for pipeline and panel installations.

Can this pressure gauge be customized?

Yes. Pressure ranges, connection threads and dial markings can be customized based on project requirements.

Is this gauge suitable for industrial applications?

Yes. It is designed for process control, plant monitoring and machinery applications involving compatible media.
