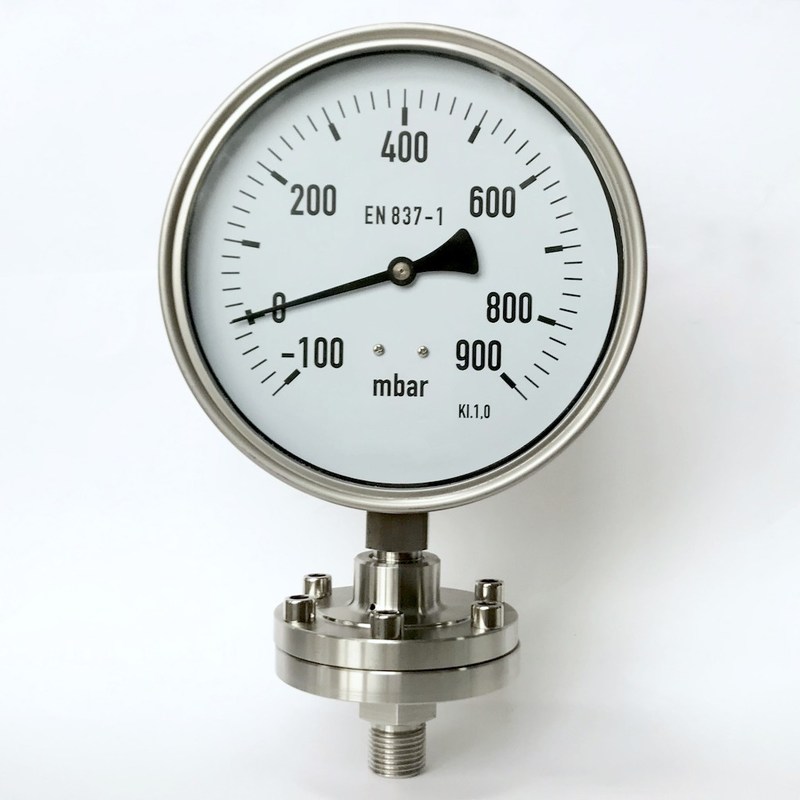

160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial

Description
Size: 160mm Mount: Radial
Pressure Range: Customized Case Material: Stainless Steel 304
Lens Material: Tempered Glass Pressure Element: Stainless Steel 316, 304
Movement: Stainless Steel 304 Dial: Aluminum
Accuracy: 1.0 Deaign: EN837-1
High Light:

160mm Diaphragm Seal Pressure Gauge

,

100 mbar Diaphragm Seal Pressure Gauge

,

900 mbar radial pressure gauge

160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial


Description
Backlash is mainly caused by wear on the teeth of the gears. Vibrations and pulsations are making it even worse. A pressure gauge with backlash on the gears will always indicate a pressure which is too low or too high. Subjected to pulsations, the backlash will cause the pointer to rotate further to the left and right than would normally be the case without backlash. Having a fixed link is making the spiral Bourdon tube pressure gauge very resistant to extreme vibration or pulsation. Pressure Gauge Diaphragm Seal Manufacturer- Wesen Technologies.

Applications
Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries
Mechanical pressure display on pipelines, fermenters, bioreactors and vessels
Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing
For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media
​​
Special features
Safety via mechanical pressure transmission
Case and wetted parts in hygienic design
Suitable for SIP and CIP, autoclavable version available
Easy zero point setting
High overload safety




Specifications

Design

EN 837-1

Nominal size

160mm

Accuracy

1.0
Pressure range (bar)

0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16,
-1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15

Pressure limitation

Steady:
Full scale value
Fluctuating:
Scale range <4 bar: Full scale value
Scale range ≥4 bar: 2/3 x full scale value

Overload safety

2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection
5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection

Vacuum resistance

Without
Vacuum resistance to -1 bar
Depending on the scale range, vacuum resistance is provided or available on request

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: -20 ... +150 °C
CIP and SIP: 150 °C continuously for wetted parts
Autoclavable version, max. 134 °C, ≤ 20 minutes

Ingress protection

IP54

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Diaphragm element, welded to the process connection

Movement SUS 304
Dial Aluminium, white, with pointer stop pin
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Options Other process connection thread
Surface mounting flange
Mounting bracket


Dimensions
160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial 0



DN



For pipe

Outer Ø x wall thickness

PN Dimensions in mm
NG h



Ø Plf

d k



1 ½"

38.1 x 1.65

40 100 91 35 50.5 15
2"



50.8 x 1.65

40 100 91 35 64 15


Ordering information
Model / Dial size / Pressure Range / Process connection / Options


160mm Dial Pressure Gauge Diaphragm Seal 100 Mbar 900 Mbar Radial 1
