Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 400 Bar Or Customized |
| Case Material: | Black-painted Steel | Window: | Polycarbonate (PC) |
| Bourton Tube: | Phosphor Bronze, Helical Type | Movement: | Copper Alloy |
| Dial: | Aluminum | Accuracy: | 2.5 |
| High Light: | Non linear CNG Pressure Gauge,CNG Pressure Gauge,hydraulic pressure gauge 400 bar |
||

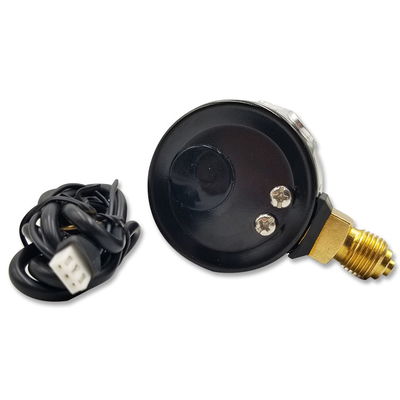

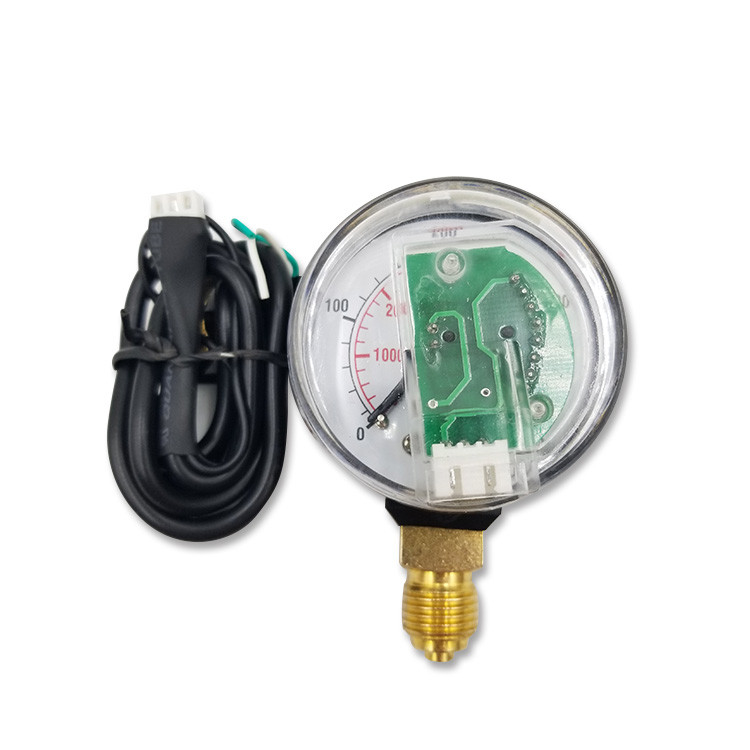

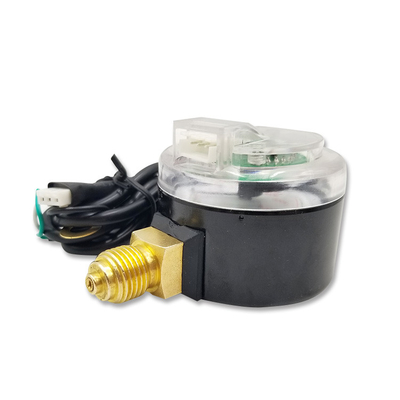

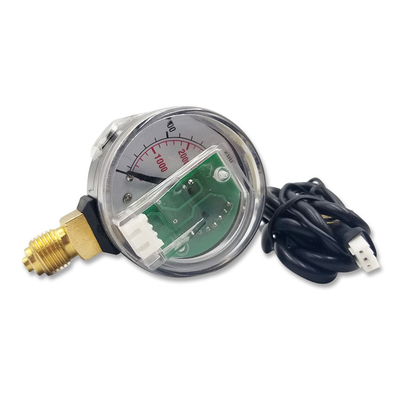

50mm Non-linear Electrical Output Signal External Cable CNG Pressure Gauge 400 bar
Description
Resistive CNG pressure sensor using the AEB standard for 1/4 radial thread.
With mechanical reading by means of a gauge directly on the sensor (tank level indication from empty to full is shown in a clockwise direction).
The sensor transforms the pressure of a tank into an electrical signal if combined with a switch unit / AEB indicator pre-arranged for such purpose.
No calibration required.
Applications
Measurement of the filling pressure in gas tanks for CNG vehicles
Special features
Non-contact optical sensor (wear-free)
Nominal size 2”(50 mm)
Robust steel case
Scale range 0/6,000 PSI
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
2.5 |
| Pressure range |
0~400 bar 0/6,000 PSI or other equivalent units of pressure or vacuum |
|
Pressure limitation |
Steady: 3/4 x full scale value Short time: full scale value |
|
Permissible temperature |
Ambient: -40 ... +120 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Bourdon tube, brass, helical type |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | PC, with integrated optical electronics |
| Options |
Other pressure connections Custom dial layout Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales |
Electronics
| Output signal (with supply voltage 12V DC) | 600 PSI ±150 PSI: 2.5 V ± 1.5 V
1000 PSI ±150 PSI: 5 V ± 1.5 V 1500 PSI ±150 PSI: 7.5 V ± 1.5 V 2000 PSI ±150 PSI: 11.3 V - 2 V |
| Output signal (with supply voltage 5V DC) | 600 PSI ±150 PSI: 1.5 V ± 0.3 V
1000 PSI ±150 PSI: 2.5 V ± 0.3 V 1500 PSI ±150 PSI: 3.5 V ± 0.5 V 2000 PSI ±150 PSI: 4.5 V ± 0.5 V |
| Supply voltage | 12 or 5 V DC |
| Electrical connector | Connector, 3-pin |
Dimensions
| Dimensions in mm | |||||||
| A | B | D | E | H | T | W | Weight |
| 50 | 42.5±0.5 | 9.5 | 10 | 45±1 | 1/4" | 14 | 0.125 kg |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
