Product Details:
|
| Deaign: | EN837-1 | Size: | 50mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 400 Bar Or Customized |
| Case Material: | Black-painted Steel | Window: | Polycarbonate (PC) |
| Bourton Tube: | Phosphor Bronze, Helical Type | Movement: | Copper Alloy |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | Bottom Mount CNG Pressure Gauge,50mm Linear CNG Pressure Gauge,400 bar vehicles fuel tank |
||

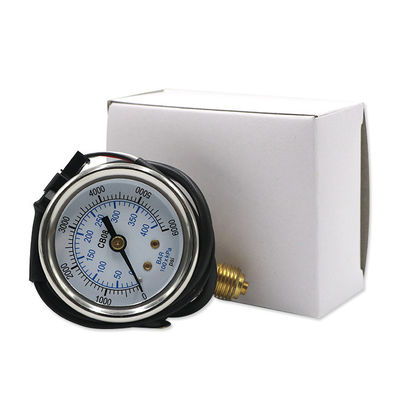

50mm Linear Electrical Output Signal CNG Pressure Gauge 400 bar Vehicles Fuel Tanks
Description
At present, auto emissions are the main source of city air pollution. The development of clean energy vehicles has become more and more important. Compressed natural gas vehicle (CNG ) with low energy consumption, pollutant emissions is internationally recognized as the most ideal vehicle alternative energy. Development of natural gas vehicle to solve the problems of environment pollution and energy saving is significantly important.
Applications
Measurement of the filling pressure in gas tanks for CNG vehicles
Special features
Non-contact optical sensor (wear-free)
Nominal size 2”(50 mm)
Robust steel case
Scale range 0/6,000 PSI
|
Design |
EN 837-1 |
|
Nominal size |
50mm |
|
Accuracy |
2.5 |
| Pressure range |
0~400 bar 0/6,000 PSI or other equivalent units of pressure or vacuum |
|
Pressure limitation |
Steady: 3/4 x full scale value Short time: full scale value |
|
Permissible temperature |
Ambient: -40 ... +120 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Bourdon tube, brass, helical type |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | PC, with integrated optical electronics |
| Options |
Other pressure connections Custom dial layout Other pressure scales available. bar, kPa, MPa, kg/cm² and dual scales |
Electronics
| Output signal (with supply voltage 12V DC) | 600 PSI ±150 PSI: 2.5 V ± 1.5 V
1000 PSI ±150 PSI: 5 V ± 1.5 V 1500 PSI ±150 PSI: 7.5 V ± 1.5 V 2000 PSI ±150 PSI: 11.3 V - 2 V |
| Output signal (with supply voltage 5V DC) | 600 PSI ±150 PSI: 1.5 V ± 0.3 V
1000 PSI ±150 PSI: 2.5 V ± 0.3 V 1500 PSI ±150 PSI: 3.5 V ± 0.5 V 2000 PSI ±150 PSI: 4.5 V ± 0.5 V |
| Supply voltage | 12 or 5 V DC |
| Electrical connector | Connector, 3-pin |
Dimensions
| Dimensions in mm | |||||||
| A | B | D | E | H | T | W | Weight |
| 50 | 42.5±0.5 | 9.5 | 10 | 45±1 | 1/4" | 14 | 0.125 kg |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
