Product Details:
|
| Size: | 80mm | Mount: | Center Back |
|---|---|---|---|
| Temperature Range: | 200 F Or Customized | Case Material: | SUS 304 |
| Connection: | PT, NPT, G, BSP | Stem Dia.: | 6mm, 8mm, 10mm |
| Stem Length: | 30cm (customized) | Lens: | PC Glass |
| Color: | Silver | Accuracy: | 1.0 |
| High Light: | Heating systems bimetallic stemmed thermometer,0-200 Fahrenheit bimetallic stemmed thermometer,80mm adjustable angle thermometer |
||

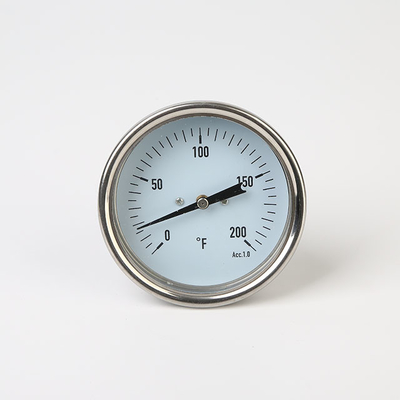

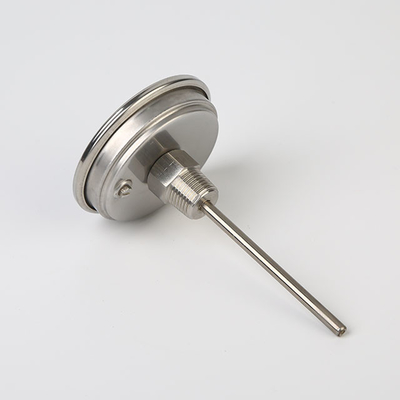

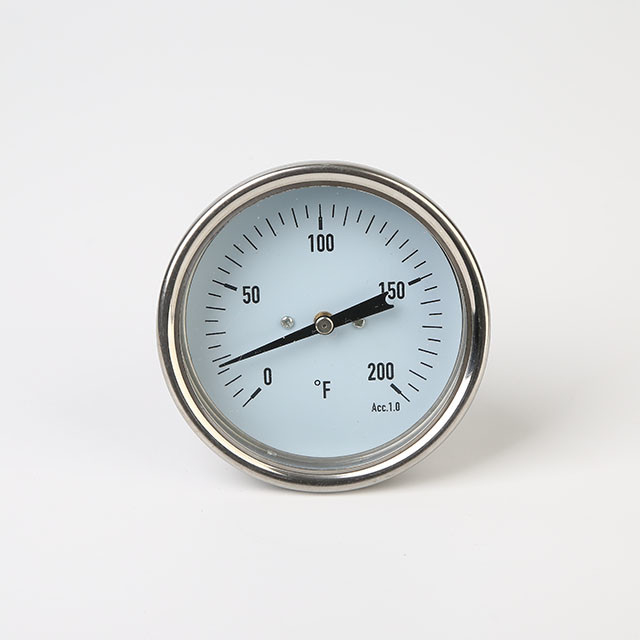

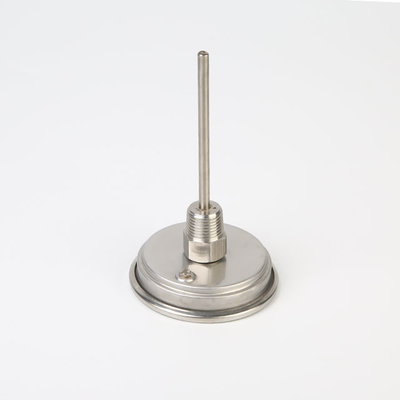

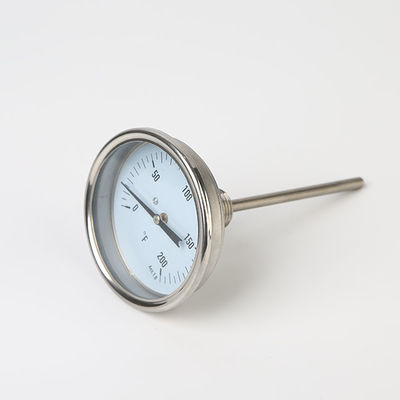

80mm 0-200 Fahrenheit Stainless Steel Bimetal Thermometer For Heating systems
Description
The model M14 bimetal thermometer was developed as a standard version for simple temperature indication in heating applications.
Its modular design enables a multitude of combinations of case materials, nominal sizes, scale ranges and stem lengths. This ensures that the basic dimensions are maintained.
Applications
Heating systems
Hot water tanks
Solar collectors
Heat transfer stations
Special features
Reliable and cost-effective
Indication accuracy class 2 in accordance with EN 13190
Scale ranges from -30 ... +120 °C
|
Nominal size |
63mm, 80mm, 100mm |
|
Accuracy |
1.0 |
| Temperature range | 0-200 F (customized) |
|
Working range |
Full scale value |
|
Case |
Steel |
|
Measuring element |
Bimetal coil |
| Connection location | Back mount |
| Stem | Aluminium |
| Thermowell | Copper alloy, removable, friction fit |
| Dial | Aluminium |
| Window | Plastic, glass |
| Options |
Other scale ranges |
Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options
