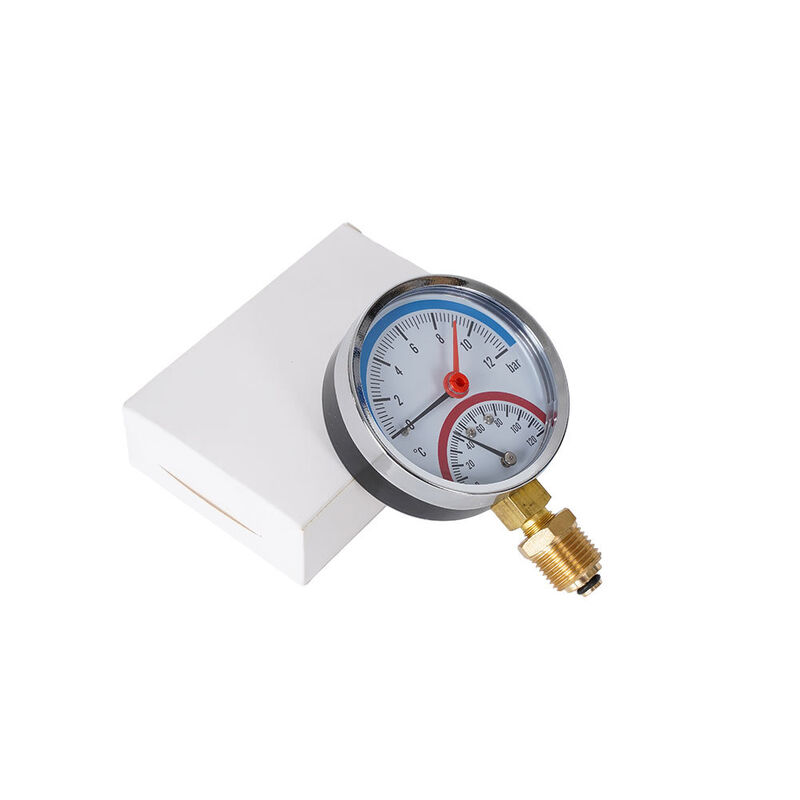

YW63CX-Z 63mm Temperature & Pressure Gauge 12bar / 120°C HVAC Boiler Combined Gauge

Product Overview

The YW63CX-Z temperature and pressure gauge is a compact 63mm mechanical instrument designed for simultaneous measurement of pressure and temperature in HVAC, boiler, and industrial pipeline systems.

It integrates a bourdon tube pressure system with a capillary temperature sensing probe, providing accurate and stable dual readings for heating and cooling applications.

This combined gauge reduces installation space and improves system monitoring efficiency in industrial and commercial equipment.

Technical Specifications

Applications

• HVAC heating and cooling systems
• Boiler pressure and temperature monitoring
• Hot water circulation systems
• Industrial pipeline systems
• Refrigeration systems
• Building heating systems
• Mechanical equipment monitoring

Key Features & Advantages

Dual Measurement Function

Combines temperature and pressure measurement in one instrument, improving system efficiency.

Space Saving Design

Reduces installation space compared to separate gauges.

Stainless Steel Construction

Corrosion-resistant housing suitable for HVAC and industrial environments.

Mechanical Reliability

Bourdon tube and capillary system ensure stable and long-term operation.

Cost-Effective Solution

Reduces cost compared to installing separate temperature and pressure instruments.

Working Principle

The bourdon tube detects pressure changes while the capillary tube senses temperature variations. Both signals are displayed on a dual scale dial for real-time monitoring.

Important Note

This is a mechanical combined temperature and pressure gauge. It does not include electrical output or digital functions.

FAQ

What is a combined temperature and pressure gauge used for?

It is used for monitoring both temperature and pressure in HVAC and boiler systems.

Why use a combined gauge instead of separate instruments?

It saves installation space, reduces cost, and improves system monitoring efficiency.

Is it suitable for HVAC systems?

Yes, it is widely used in heating, cooling, and HVAC pipeline systems.
