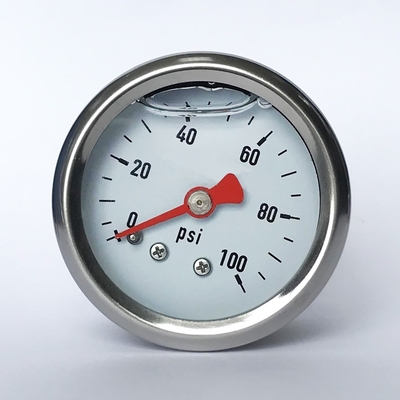

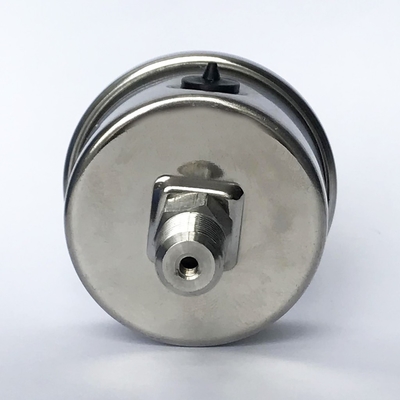

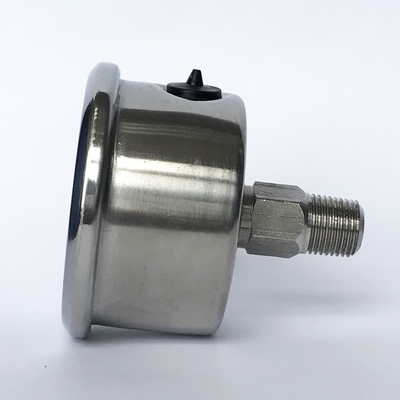

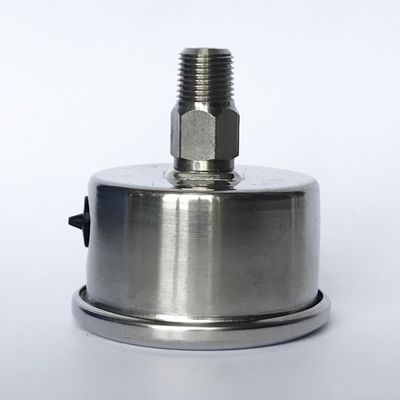

1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge

1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge
1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge 1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge 1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge 1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge

Large Image :  1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M02.02.40.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge

Description
Deaign: EN837-1 Size: 40mm
Mount: Axial Direction Pressure Range: 100 Psi Or Customized
Case Material: SS 316L Lens Material: Glass, Safety Glass
Bourton Tube: SS 316L Movement: SS 304
Dial: Aluminum Accuracy: KL 2.5

1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge



Description

Material compatibility: the materials in contact with the fluid must be compatible with it. Standard pressure gauges are made of copper or copper alloy and are compatible with the most common fluids (water, air, oils, etc.), stainless steel pressure gauges are used for more aggressive fluids. For very aggressive, viscous, pasty or extremely hot fluids, a diaphragm separator is used, the pressure gauge is thus isolated from the fluid but the pressure is transmitted.



Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction



Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar



Specifications

Design

EN 837-1

Nominal size

40mm

Accuracy

2.5
Pressure range 100 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Stainless steel, SUS 304, SUS 316

Pressure element

Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black and red lettering
Pointer Aluminium
Case Stainless steel
Ring Rolling ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket



Dimensions



1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge 0





Ordering information

Model / Dial size / Pressure Range / Process connection / Options



1.5" 100 psi Axial Mount Manometer 1/8 NPT Red Pointer All Stainless Steel Pressure Gauge 1
