Product Details:
|
Size: | 63mm | Mount: | Lower |
---|---|---|---|
Pressure Range: | 10 Bar Or Customized | Case Material: | 316 SS, 304 SS |
Lens Material: | Instrument Glass | Bourton Tube: | SS 316 |
Movement: | SS 304 | Socket: | SS 316 |
Accuracy: | 2.5 | Liquid: | Silicone Oil, Glycerin |
High Light: | Glycerine Manometer Liquid Filled Pressure Gauge,Oil SS316 Liquid Filled Pressure Gauge,10 bar pressure gauge |

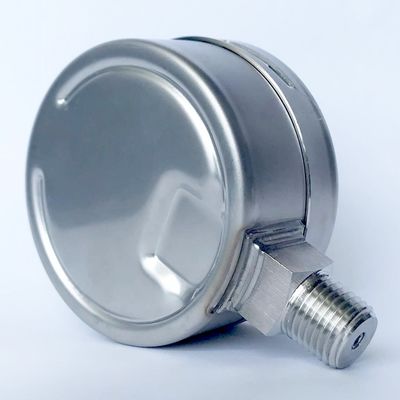

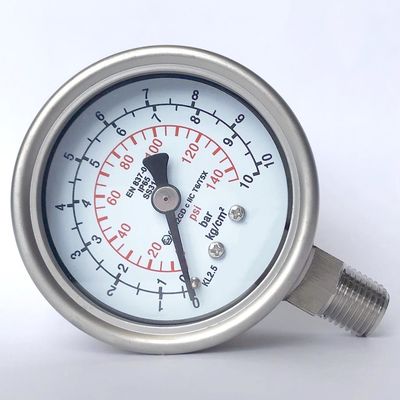

2.5 Inches 10 bar Silicone Oil SS 316 Glycerine Manometer 1/4" NPT Removable Ring Liquid Filled Pressure Gauge
Description
In traditional gauges, condensation build-up results in visibility issues. This can be a crucial (and costly) flaw in high-humidity environments—an unreadable gauge is a worthless gauge. Liquid-filled gauges are designed to prevent moisture from entering not only the body casing but also the inside of the case lens.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | Acc.2.5 |
Pressure range | 10 bar (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Stainless steel |
Pressure element | Stainless steel, C-type or helical type |
Movement | Stainless steel |
Dial | Aluminium, colorful, with pointer stop pin Black lettering |
Pointer | Aluminium |
Case | Stainless steel |
Ring | Stainless steel |
Window | Plastic, glass, safety glass |
Unit | bar, psi, kg/cm2, kPa, MPa |
Thread | 1/4 G, BSP, PT, BSPT, NPT |
Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
Size | Dimensions in mm | Weight in kg | |||||||||
a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
