Product Details:
|
| Deaign: | EN837-1 | Size: | 63mm |
|---|---|---|---|
| Mount: | Bottom Mount | Pressure Range: | -100 KPa, Vacuum |
| Case Material: | Stainless Steel | Lens Material: | PC |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Aluminum | Color: | Silver |
| High Light: | PC Lens 63mm pressure gauge,100 kPa 63mm pressure gauge,SS304 stainless steel pressure gauge |
||

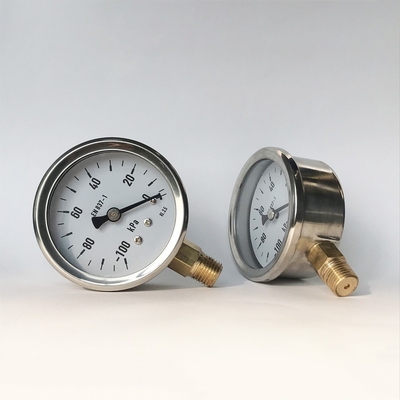

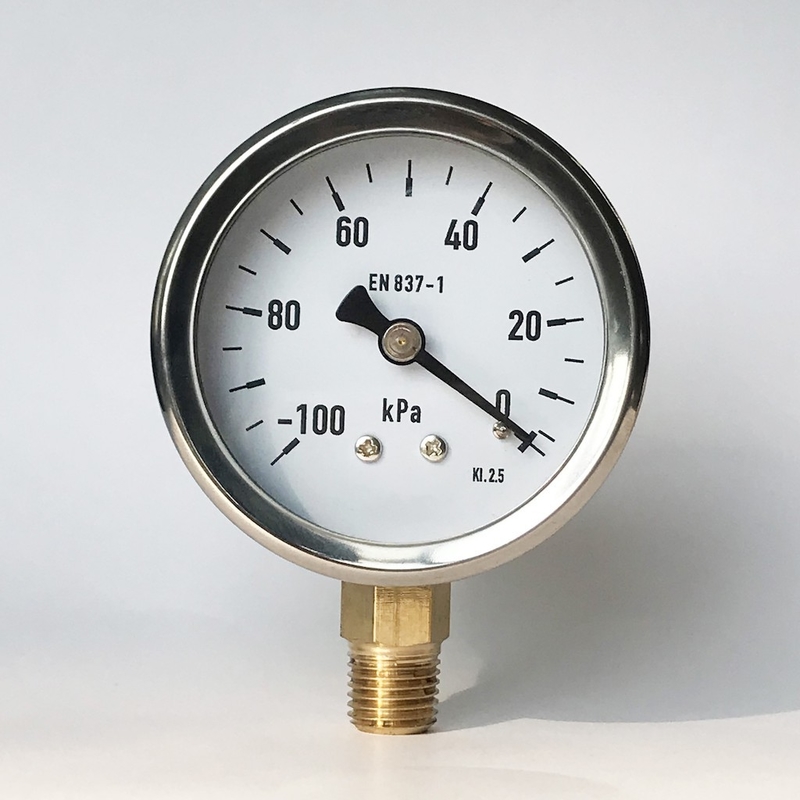

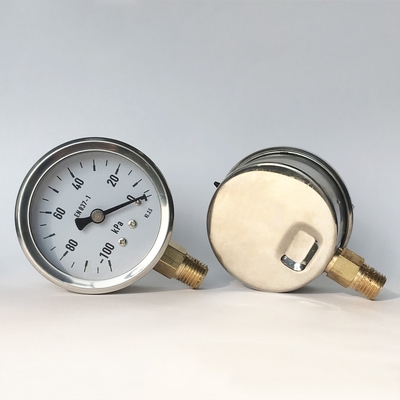

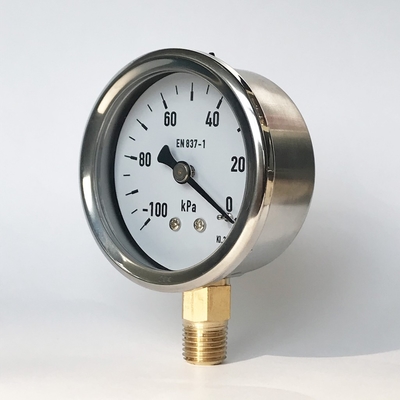

63mm 2.5" -100 kPa Bottom Mounting Manometer SS304 Case Vacuum Pressure Gauge
Description
Dial and digital pressure gauges and vacuum gauges monitor pressure of liquids and gases ranging from drinking water and compressed air to petrochemical processing and challenging fluids in industrial and wastewater applications. Dial industrial pressure gauges measure low and high pressures as well as vacuum and compound ranges. Digital industrial and process pressure gauges have a digital LCD display that shows numeric readings in a number of selectable engineering pressure units. Lead-free pressure gauges are certified and safe to use in systems that have contact with drinking water. Fire apparatus gauges measure pressure in fire trucks and fire sprinkler gauges measure air, water, or in sprinkler systems. HVAC and boiler gauges measure both the temperature and water pressure in boilers. Low-pressure gauges have a bellows or a diaphragm sensor for sensitive low-pressure readings. Test pressure gauges are highly accurate and used for laboratory and inspection applications.
Applications
Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
2.5, 1.6 |
| Pressure range | -100 kPa vacuum (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options |
Other process connection |
Dimensions
lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
