Product Details:
|
| Deaign: | EN837-1 | Size: | 63mm |
|---|---|---|---|
| Mount: | Lower | Pressure Range: | 100 Kg/cm2 Or Customized |
| Case Material: | SS 316L | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | SS 316L | Movement: | SS 304 |
| Dial: | Aluminum | Accuracy: | KL 1.6 |
| High Light: | Bayonet Ring Stainless Steel Gauges,SS316 Lower Mount Pressure Gauge,Lower Mount Hydraulic Pressure Gauge 63mm |
||

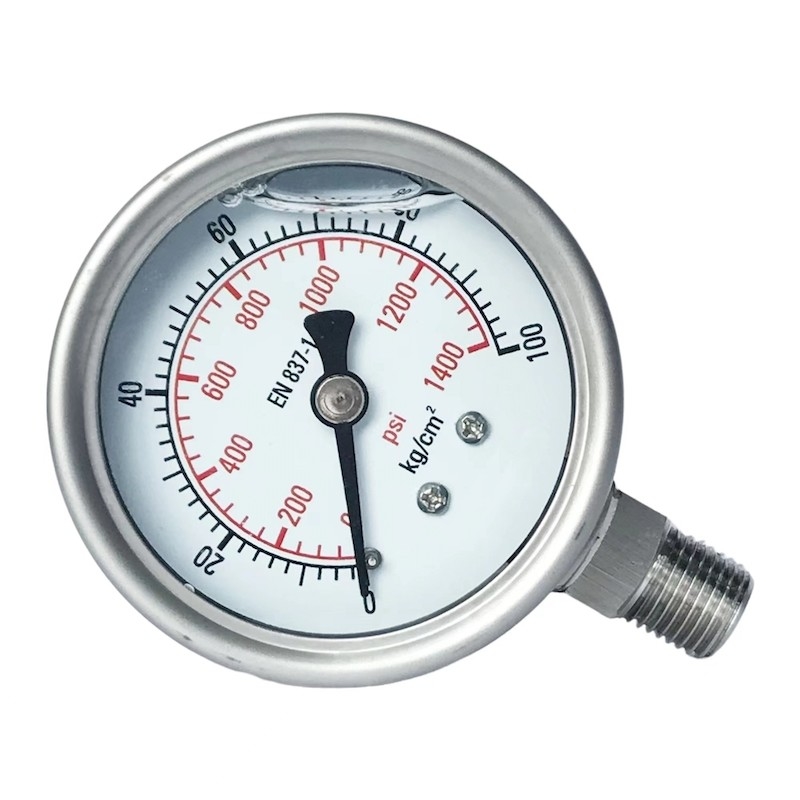

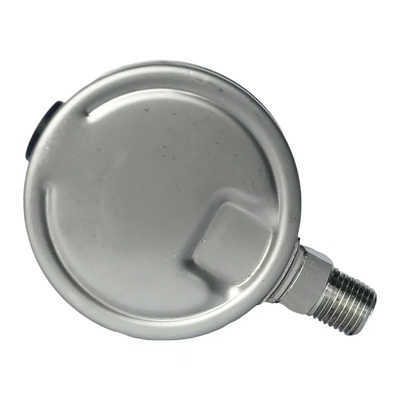

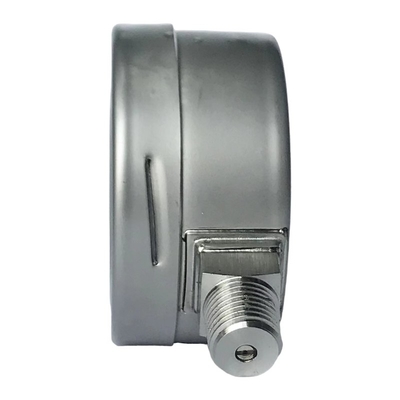

63mm Stainless Steel Gauges Lower Mount SS316 Material Bayonet Ring
Description
The components of stainless steel pressure gauge: joint, stainless steel spring tube, sealing sheet, movement, connecting rod, dial (dial), pointer, sealing ring, case.
The measured pressure enters the spring tube through the joint, and under the action of pressure or vacuum, the spring tube produces elastic deformation, causing the end of the spring tube to shift. Its displacement is amplified by the mechanical transmission mechanism (connecting rod and movement) and transmitted to the indicating device, and then the pressure or vacuum value is indicated by the deflection of the pointer on the dial.
Applications
Intended for adverse service conditions where pulsating or vibration exists
Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Stainless Steel Gauges are suitable for gaseous or liquid media that will not obstruct the pressure system
Special features
Excellent load cycle stability and shock resistance
Design per EN 837-1
Completely from stainless steel
Stainless steel gauges pressure ranges up to 15,000 psi
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
1.6 |
| Pressure range | 100 kg/cm2 (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Rolling ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
