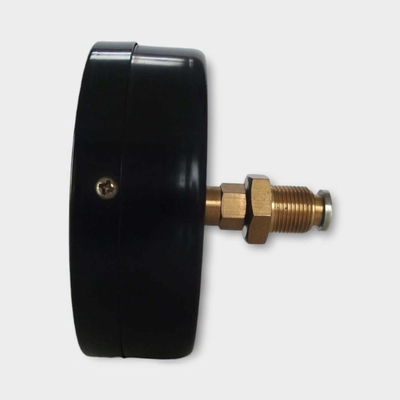

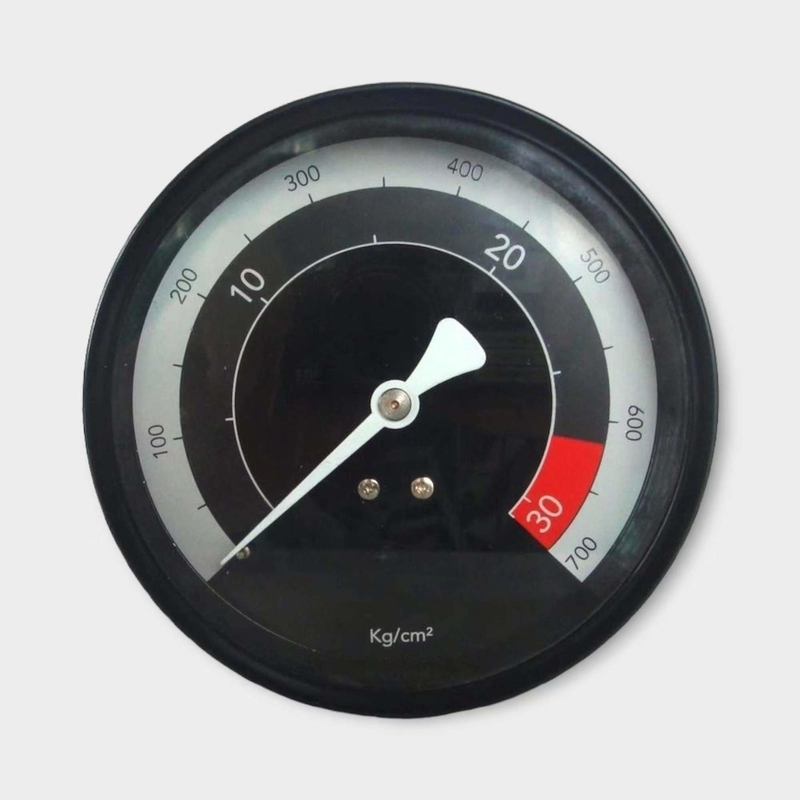

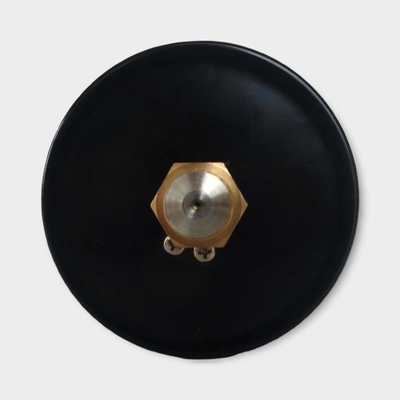

700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm

700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm
700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm 700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm 700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm

Large Image :  700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm

Product Details:
Place of Origin: China
Brand Name: WESEN or Customized
Certification: CE, ISO
Model Number: M04.02.100.N
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3~4 Weeks
Payment Terms: T/T
Supply Ability: 20000 Pieces per Month

700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm

Description
Deaign: EN837-1 Size: 100mm
Mount: Center Back Pressure Range: 700 Kg Or Customized
Case Material: Painted Steel Lens Material: Acrylic, Glass
Bourton Tube: Phosphor Bronze Movement: Brass
Dial: Aluminum Accuracy: 1.6
High Light:

Back Mount HVAC Manometer

,

Painted Steel Case HVAC Manometer

,

Utility Pressure Gauge 700 Kg

100mm HVAC Manometer Back Mount 700 kg Black Painted Steel Case



Description

Pressure Gauges are an essential component of any hydraulics system. They act as a means of understanding the pressure that is currently being exhibited within the system. This information is necessary to the continued effectiveness of the entire system. A low pressure reading may mean that certain components of the system are working improperly or not working at all.



A high pressure reading might also indicate that components are working improperly, but on the other end of the scale – they are producing too much pressure. In the event of your system suffering too high a pressure reading, it is in danger of damaging itself due to certain parts being unable to cope with the extreme pressures. There is even the risk of an explosion!



Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering



Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar



Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

1.6
Pressure range 700 kg (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted Steel
Window Acrylic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket



Dimensions

lower mount (radial)

700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm 0



Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85



back mount (axial)

700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm 1



Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26



Ordering information

Model / Dial size / Pressure Range / Process connection / Options



700 Kg Back Mount HVAC Manometer Painted Steel Case 100mm 2
