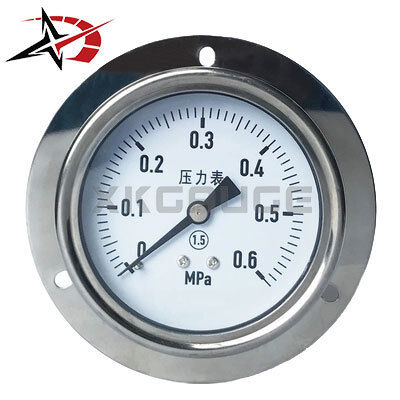

100mm Axial Flange Utility Pressure Gauge 0–0.6MPa Dry Bourdon Tube Manometer

Product Introduction

The 100mm Axial Flange Utility Pressure Gauge is a general-purpose mechanical pressure measuring instrument designed for reliable monitoring of gas and liquid pressure in industrial systems.

It adopts a dry Bourdon tube structure and a 100mm large dial for clear readability. The axial flange mounting design makes it suitable for panel installation in compressors, pumps, hydraulic systems, and OEM equipment.

Key Features

• 100mm large dial for easy reading
• Dry Bourdon tube measuring system
• 0–0.6MPa (0–6 bar) standard range
• Axial flange panel mounting design
• Stable mechanical pressure indication
• Suitable for gas and liquid media
• Low maintenance structure
• Cost-effective industrial solution
• Reliable long-term performance

Technical Specifications

Applications

• Air compressor systems
• Water pump equipment
• Hydraulic systems
• Pneumatic control systems
• Industrial machinery
• Boiler systems
• Fluid transfer equipment
• OEM control panels

Working Principle

This pressure gauge works based on the Bourdon tube principle. When pressure enters the curved tube, it causes elastic deformation. This motion is mechanically transmitted through a linkage system, converting pressure changes into pointer rotation on the dial.

The dry-type design eliminates filling liquid, making it suitable for general industrial environments where vibration and pulsation are moderate.

FAQ

What is a dry Bourdon tube pressure gauge?

It is a mechanical pressure gauge that uses a Bourdon tube without liquid filling, suitable for general industrial applications.

Why choose a 100mm pressure gauge?

The larger dial improves readability and is ideal for equipment requiring quick visual monitoring.

What does axial flange mounting mean?

Axial flange refers to a front-facing flange design used for panel or equipment mounting.
