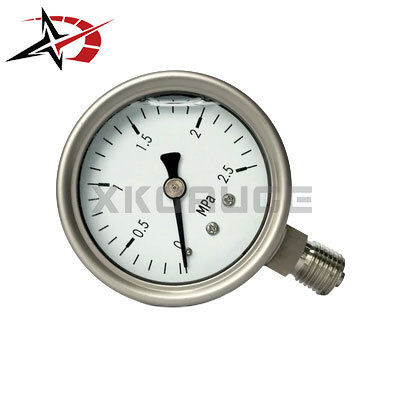

The 63mm radial liquid-filled pressure gauge is a mechanical pressure gauge designed for local pressure monitoring in hydraulic and other compatible industrial systems. With a 63mm dial, radial connection configuration, liquid-filled design and 0-2.5 MPa pressure range, this gauge provides direct analog pressure indication at the equipment or piping installation point.
Key Specifications
| Product Type |
Liquid-Filled Pressure Gauge |
| Dial Diameter |
63 mm |
| Connection Type / Position |
Radial |
| Pressure Range |
0-2.5 MPa |
| Equivalent Pressure Range |
0-25 bar |
| Gauge Design |
Liquid-Filled |
| Construction |
Stainless Steel |
| Indication |
Mechanical Analog Pointer |
| Application |
Hydraulic Pressure Monitoring |
Applications
Hydraulic Systems
The gauge is primarily positioned for hydraulic pressure monitoring applications where a 0-2.5 MPa pressure range and compatible gauge configuration are required.
- Hydraulic machinery
- Hydraulic equipment
- Hydraulic circuits
- Hydraulic pressure monitoring points
- Hydraulic power equipment
- Industrial hydraulic systems
The actual measuring medium and pressure conditions should be checked before use.
Hydraulic Pumps and Equipment
A local mechanical pressure gauge can be installed at suitable pressure-monitoring points on hydraulic equipment.
- Hydraulic pump systems
- Hydraulic power units
- Hydraulic machinery
- Pressure control assemblies
- Hydraulic test and monitoring equipment
The liquid-filled design can be considered where mechanical vibration or pressure pulsation makes direct pointer observation more difficult.
Industrial Machinery
The compact 63mm format can be considered for industrial machinery requiring local pressure indication without an electronic display.
- Industrial equipment
- Mechanical machinery
- Fluid-handling equipment
- Pressure monitoring assemblies
- Machine control systems
Application suitability depends on the actual pressure medium, temperature, pressure range and connection requirements.
Product Advantages
63mm Compact Dial
The 63mm dial provides a compact mechanical pressure indication format for machinery and equipment with limited installation space.
0-2.5 MPa Measurement Range
The 0-2.5 MPa range provides a defined measurement span for compatible hydraulic and industrial pressure-monitoring applications.
Liquid-Filled Construction
The liquid-filled design helps damp pointer movement caused by vibration and pressure pulsation, supporting easier visual pressure reading under suitable operating conditions.
Stainless Steel Construction
The stainless steel configuration provides a gauge construction option for applications requiring stainless steel components. Exact material grades should be selected according to the technical specification and measured medium.
Radial Connection
The radial connection configuration can match equipment layouts requiring the pressure connection to be positioned below the gauge.
Mechanical Local Indication
The pointer-and-dial design provides direct local pressure indication without requiring an electronic display or external electrical power for basic pressure reading.
Frequently Asked Questions
What is a 63mm liquid-filled pressure gauge?
A 63mm liquid-filled pressure gauge is a compact mechanical pressure gauge with a 63mm dial and liquid-filled case. This product is configured with a radial connection and 0-2.5 MPa pressure range.
What is the pressure range of this hydraulic gauge?
The specified pressure range is 0-2.5 MPa, equivalent to approximately 0-25 bar.
What is a radial pressure gauge?
A radial pressure gauge uses a radial connection configuration, with the pressure connection arranged below the gauge dial for compatible equipment layouts.
Is this a stainless steel pressure gauge?
Yes. The product is identified as a stainless steel pressure gauge in the product specification. The exact stainless steel grade should be confirmed from the manufacturer's technical datasheet.
Is this pressure gauge suitable for hydraulic systems?
The product is identified as a hydraulic pressure gauge and can be considered for compatible hydraulic systems operating within the specified pressure and environmental conditions.
