Product Overview

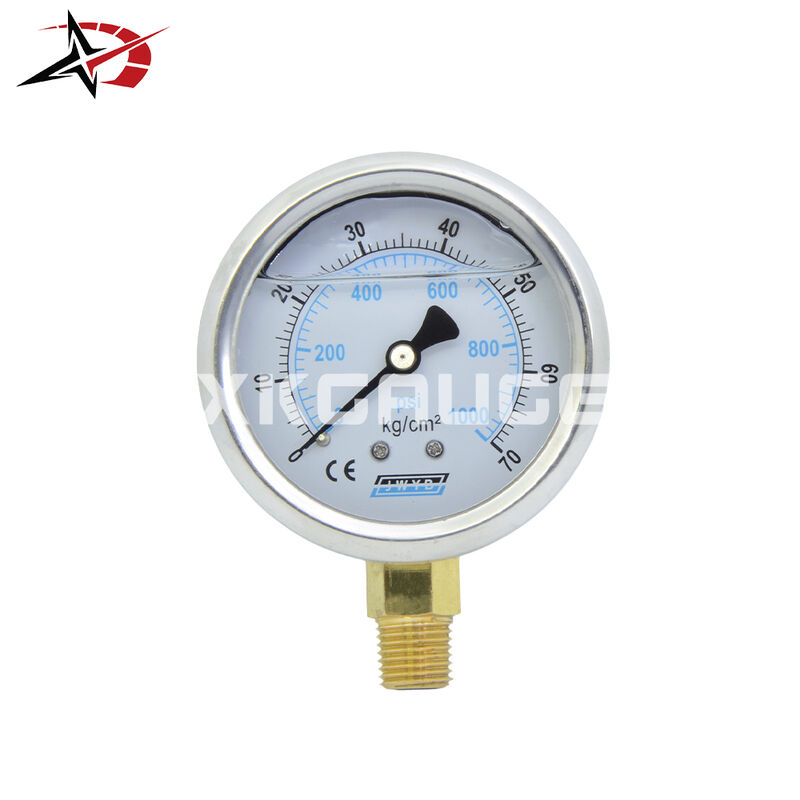

This liquid-fillable stainless steel pressure gauge features radial mounting and is designed for industrial applications requiring precise pressure measurement. The dual-scale display provides readings in both kg/cm² and PSI units for versatile use across different measurement systems.

Technical Specifications

Application Fields

• Hydraulic power systems
• Construction machinery hydraulic lines
• Air compressor systems
• Industrial pneumatic systems
• Oil pressure monitoring systems
• Injection molding machines
• Mining equipment hydraulic control
• Industrial test equipment

Product Advantages

High Pressure Stability (0–1000 PSI)

Provides stable mechanical pressure measurement in medium and high pressure industrial environments.

Glycerin Filled Anti-Vibration Design

Liquid filling reduces vibration and protects internal Bourdon tube mechanism from pulsation damage.

Stainless Steel Corrosion Resistance

Suitable for harsh industrial environments including humidity, dust, and mild chemical exposure.

Radial Bottom Mount Installation

Allows direct installation into pipeline systems and hydraulic equipment for easy integration.

Working Principle

The gauge works based on the Bourdon tube principle. When pressure enters the curved tube, it tends to straighten proportionally to internal pressure changes.

This mechanical movement is transferred through a linkage system that drives the pointer movement across the dial.

The glycerin-filled case dampens vibration and pulsation, ensuring stable and readable output even in dynamic industrial systems.

FAQ

What is a 0-1000 PSI pressure gauge used for?

It is used in hydraulic systems, compressors, and industrial machinery requiring medium-to-high pressure monitoring.

What does radial mount mean?

Radial mount means the pressure connection is located at the bottom of the gauge for direct pipeline installation.

Is this gauge suitable for hydraulic oil systems?

Yes, it is widely used in hydraulic oil and industrial fluid systems within its pressure range.
