Product Overview

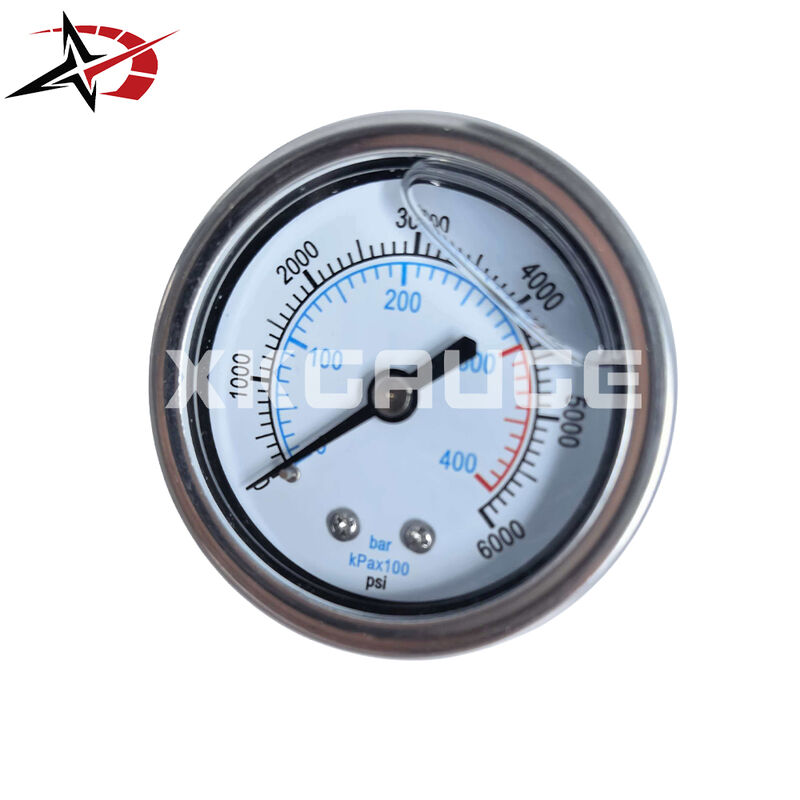

Professional-grade axial mount pressure gauge designed for industrial applications. Features liquid filling for vibration resistance and extended service life. Suitable for measuring pressures up to 400 Bar (6000 PSI) with reliable accuracy.

Technical Specifications

Application Fields

• Hydraulic systems
• Industrial air compressors
• Pump discharge pressure monitoring
• Injection molding machines
• Construction machinery hydraulics
• Mining and heavy equipment systems
• Industrial fluid control systems
• Maintenance and test benches

Product Advantages

6000 PSI High Pressure Capability

Designed for medium-to-high pressure industrial systems ensuring stable performance under continuous load conditions.

Axial Mount Space-Saving Design

Back connection structure enables compact installation on panels and equipment systems.

Bourdon Tube Mechanical Reliability

No electricity required, ensuring stable and maintenance-free long-term operation.

Working Principle

The gauge operates based on the Bourdon tube principle. When pressure enters the curved tube, it deforms proportionally to the applied pressure.

This mechanical movement is transmitted through a linkage system that drives the pointer on the dial scale.

The glycerin-filled case reduces vibration and protects internal components from pressure pulsation, ensuring stable measurement output.

FAQ

What is the purpose of glycerin filling?

It reduces vibration, dampens pressure pulsation, and improves reading stability.

Is this gauge suitable for hydraulic systems?

Yes, it is widely used in hydraulic pumps, compressors, and industrial machinery.

What does 0–6000 PSI mean?

It indicates the maximum pressure measurement range of the gauge.

Does it require power supply?

No, it is a fully mechanical Bourdon tube gauge.
