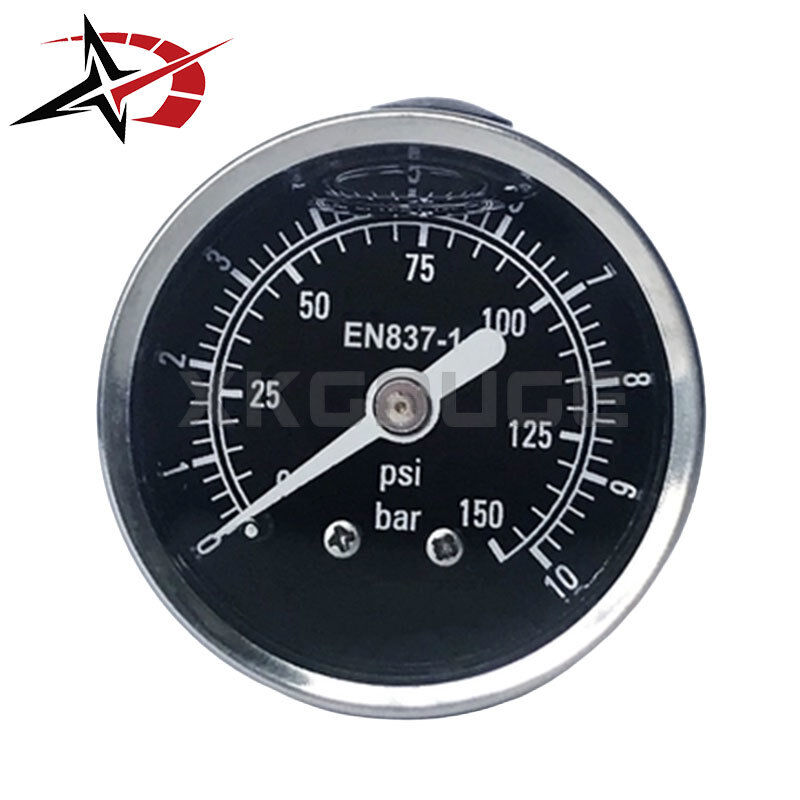

150 PSI Stainless Steel Pressure Gauge 10 Bar Vibration & Pulsation Resistant EN 837-1

Product Overview

This 150 PSI (10 bar) all stainless steel pressure gauge is designed for industrial systems where vibration and pressure pulsation are common, such as pumps, hydraulic units, and compressor systems.

It uses a Bourdon tube mechanical sensing system, providing stable and reliable pressure readings without requiring electrical power. The stainless steel construction ensures durability in corrosive and harsh industrial environments.

Optional glycerin filling improves damping performance, reducing pointer fluctuation caused by rapid pressure changes or mechanical vibration.

Technical Specifications

Applications

• Hydraulic systems and power units
• Industrial pump and compressor systems
• Water treatment and filtration systems
• HVAC pressure monitoring systems
• Manufacturing and process industries
• Construction machinery and equipment
• Compressed air systems

Key Advantages

1. Vibration & Pulsation Resistant Design

Designed for dynamic pressure systems where conventional gauges fail due to pointer oscillation.

2. All Stainless Steel Construction

Provides excellent corrosion resistance and long service life in harsh environments.

3. Stable Bourdon Tube Mechanism

Mechanical operation ensures accurate readings without external power supply.

4. Optional Glycerin Filling

Reduces vibration impact and stabilizes pointer movement in high pulsation systems.

5. EN 837-1 Compliance

Ensures international standard accuracy and industrial compatibility.

Working Principle

The Bourdon tube inside the gauge deforms when pressure increases. This mechanical deformation is transmitted to the pointer through a gear mechanism, providing real-time pressure readings.

FAQ

Why use a vibration resistant pressure gauge?

To prevent pointer fluctuation and inaccurate readings in pump and hydraulic systems.

What is the advantage of stainless steel gauge?

It offers corrosion resistance, durability, and suitability for harsh industrial environments.

What is 150 PSI in bar?

150 PSI is approximately equal to 10 bar.

Why glycerin filled pressure gauge?

It helps dampen vibration and stabilizes the pointer under pulsating pressure conditions.
