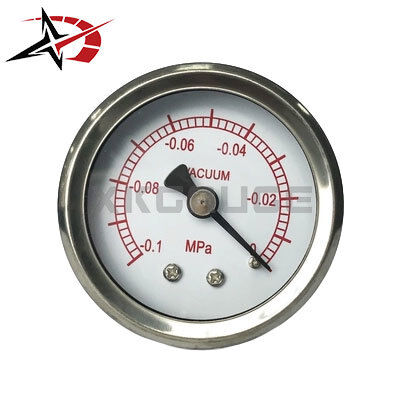

60mm All Stainless Steel Axial Vacuum Gauge 0.1MPa Back Mount Manometer

Product Introduction

The 60mm all stainless steel axial vacuum gauge is designed for accurate monitoring of negative pressure in industrial vacuum systems. Featuring a compact dial size, back mount configuration and robust stainless steel construction, this gauge is well suited for equipment integration and panel installations.

Key Features

• 60mm (2.5 inch) compact dial size
• Vacuum measuring range: -0.1MPa
• All stainless steel construction
• Axial (back mount) connection design
• Bourdon tube measuring principle
• Suitable for panel and equipment integration
• Mechanical operation without power supply
• Enhanced corrosion resistance
• Designed for industrial vacuum applications

Technical Specifications

Product Advantages

1. Corrosion Resistant Construction

The all stainless steel structure improves durability in industrial environments where moisture or corrosive atmospheres may be present. All-stainless designs are widely recognized for maintaining appearance and performance over extended service periods.

2. Compact Design for Equipment Integration

The 60mm dial size allows installation in space-constrained systems while maintaining clear local indication.

3. Convenient Back Mount Installation

The axial connection configuration simplifies panel mounting and equipment integration for OEM applications.

4. Stable Mechanical Measurement

The Bourdon tube mechanism provides reliable vacuum indication without requiring electrical power.

Working Principle

The Bourdon tube deforms in response to vacuum pressure changes relative to atmospheric pressure. This mechanical movement is transmitted through a gear mechanism, driving the pointer across the dial to indicate the corresponding vacuum value. The design provides dependable local monitoring for industrial applications.

FAQ

What is the advantage of a back mount vacuum gauge?

Back mount gauges are commonly used in control panels and equipment housings where front-facing dial visibility is required.

Why choose an all stainless steel vacuum gauge?

Stainless steel construction enhances corrosion resistance and mechanical durability compared with standard steel designs.

Can this gauge be used with vacuum pumps?

Yes. Vacuum pump systems are among the most common applications for this type of gauge.
