| Place of Origin: | Anhui China |
| Brand Name: | XK Gauge |
| Certification: | ISO,CE |
| Model Number: | YN63 |

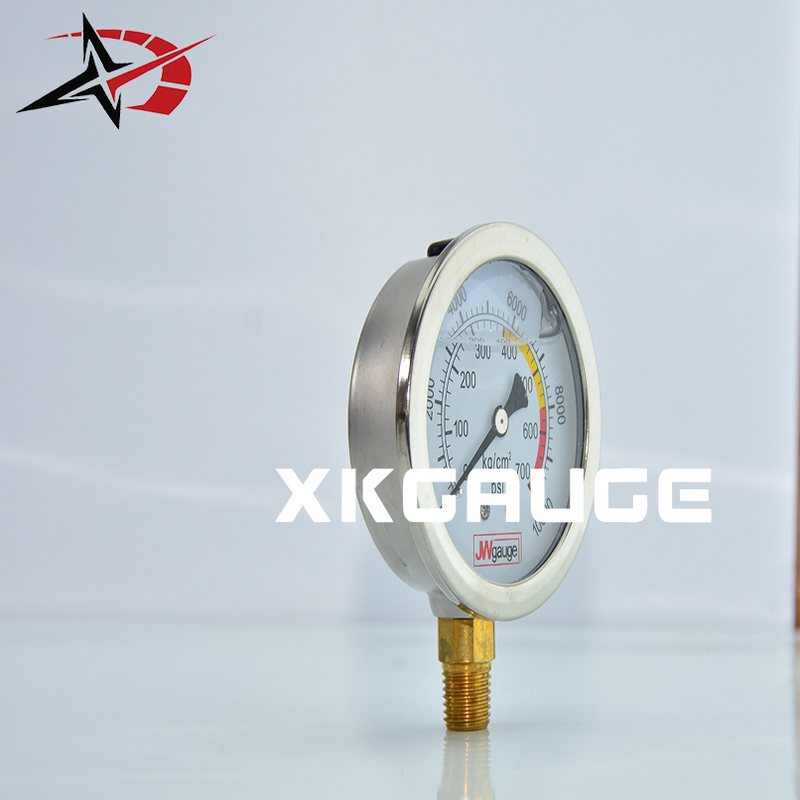

A heavy-duty 63mm (2.5") liquid filled pressure gauge engineered for high-pressure industrial applications up to 8000 psi (700 kg/cm²). The stainless steel case and bottom mount connection deliver reliable, accurate pressure readings in demanding environments where vibration, pulsation, and corrosion resistance are critical.
| Parameter | Specification |
|---|---|
| Product Type | Liquid Filled Pressure Gauge |
| Nominal Dial Size | 63mm, as listed |
| Listed Pressure Range | 8000 PSI |
| Mounting Configuration | Bottom mount |
| Case Material | Stainless steel case |
| Fill Fluid | Glycerin filled |
| Connection Thread | Brass |
The listed 63mm size provides a reference for evaluating the available instrument space. Check the overall dimensions, mounting clearance and connection location in the technical drawing before installation.
Liquid-filled pressure gauges are commonly selected for applications where vibration or pressure pulsation may affect pointer readability. The actual effect depends on the instrument design and operating conditions.
The product listing identifies a stainless steel case. Confirm the material grade and the materials used for wetted components separately when evaluating corrosion compatibility with the process medium.
The bottom mount arrangement is a key selection criterion for equipment integration and replacement. Verify the thread specification, connection position and mounting dimensions before ordering.
The listed 8000 PSI range should be checked against the actual operating pressure, expected fluctuations and manufacturer-specified overpressure limits. The stated measuring range alone does not establish the allowable maximum operating pressure.
Evaluate the gauge for hydraulic equipment only after confirming the required pressure range, connection rating, fluid compatibility and applicable operating conditions.
For pump applications, check normal operating pressure, pressure spikes, pulsation and the manufacturer's installation requirements.
The nominal dial size and bottom mount configuration can be compared with machinery layout and instrument connection requirements to assess compatibility.
A liquid-filled design may be worth evaluating where mechanical vibration affects pointer movement. Confirm the specific gauge's performance limits rather than assuming a particular vibration rating.
The product title lists 8000 PSI. The same listing also refers to 700 kg/cm², so the actual dial range must be confirmed against the official datasheet before use.
A liquid-filled gauge has a filling fluid inside its case. Depending on its design and operating conditions, this may help reduce pointer fluctuation associated with vibration or pressure pulsation.
No. The case material and wetted component materials are separate specifications. Check the manufacturer's material list for the exact construction.
