Product Details:
|
| Deaign: | EN837-1 | Size: | 100mm |
|---|---|---|---|
| Mount: | Panel Mount | Pressure Range: | 5000 Psi Or Customized |
| Case Material: | SS 316L | Lens Material: | Glass, Safety Glass |
| Bourton Tube: | SS 316L | Movement: | SS 304 |
| Dial: | Aluminum | Accuracy: | KL 1.0 |
| High Light: | NPT lower back mount pressure gauge,100mm lower back mount pressure gauge,hydraulic pressure gauge 5000 psi |
||

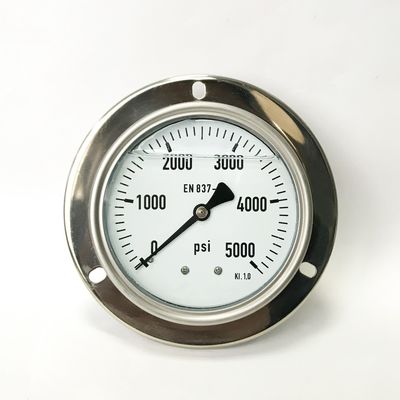

4 Inches 5000 psi Panel Mount Manometer 3/8" NPT Lower Back Connection All Stainless Steel Pressure Gauge
Description
Gauges must be handled with care. They must be stored in a cool, dry place in their original shipping box. Never install gauges that have been dropped or damaged in anyway. Such gauges should be destroyed immediately. Adequate heat must be provided where gauges are installed. The gauges must be protected from mechanical damage. Install the gauges according to the following steps:
1.Apply a small amount of pipe-joint compound or tape to the external threads of the gauge only. Take care that no joint compound is allowed into the orifice of the gauge.
2.Turn the unit clockwise to thread the gauge into the outlet of the coupling. DO NOT overtighten the gauge.
Applications
♦ Intended for adverse service conditions where pulsating or vibration exists
♦ Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
♦ Suitable for gaseous or liquid media that will not obstruct the pressure system
Special features
♦ Excellent load cycle stability and shock resistance
♦ Design per EN 837-1
♦ Completely from stainless steel
♦ Pressure ranges up to 15,000 psi
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
1.0 |
| Pressure range | 5000 psi (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
| Medium temperature |
Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F] Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F] Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F] |
|
Ambiet temperature |
Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F] Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F] Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F] |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Stainless steel, SUS 304, SUS 316 |
|
Pressure element |
Stainless steel, C-type or helical type |
| Movement | Stainless steel |
| Dial | Aluminium, white, with pointer stop pin Black lettering |
| Pointer | Aluminium, adjustable type |
| Case | Stainless steel |
| Ring | Rolling ring, stainless steel |
| Window | Plastic, glass |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | G, BSP, PT, BSPT, NPT |
| Options | Other process connection Surface mounting flange Mounting bracket |
Dimensions
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
