Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Axial | Pressure Range: | 30 ATM, 40 ATM, Customized |
| Case Material: | Plastic | Lens Material: | Acrylic |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Plastic | Color: | Yellow, White |
| High Light: | Balloon Inflation Device brass pressure gauge,30 ATM brass pressure gauge,40mm radial pressure gauge |
||

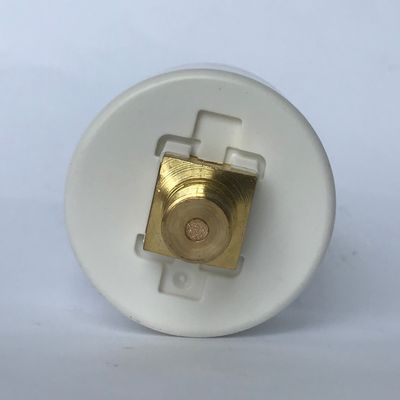

40mm Medical Pressure Gauge 30 ATM for Balloon Inflation Device
Description
Designed and manufactured for a wide variety of medical applications, our medical equipment pressure gauges are in daily use in clinics and hospitals around the globe. Medical gauges can be found on angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more. Gauge sizes range from 1” to 2½” so a solution can be found to fit most any equipment or space requirement.
Applications
Medical Inflation Device
Inflation Device Kits
Balloon Inflation Device
Inflation Syringe
Inflate and deflate dilation balloon
Manual balloon catheter pump
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 30 ATM, 40 ATM |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass, copper alloy |
|
Pressure element |
Brass |
| Movement | Brass |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Plastic |
| Window | Plastic |
| Unit |
ATM |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |
Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
