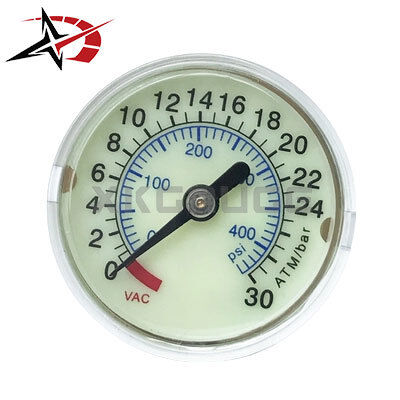

Balloon Inflation Device Medical Pressure Gauge 30 ATM 40mm Radial Brass EN 837-1 Manometer

Product Overview

The 30 ATM radial balloon inflation device pressure gauge is a compact mechanical Bourdon tube manometer designed for high-pressure medical inflation systems. It is widely used in balloon catheter inflation, angioplasty procedures, and medical syringe pressure control applications where precise and stable pressure monitoring is required.

Manufactured according to EN 837-1 standard, this gauge provides reliable analog pressure indication up to 30 ATM (≈30 bar), ensuring safe operation in interventional medical environments.

The 40mm compact dial combined with radial bottom connection and brass wetted parts makes it suitable for portable and space-limited medical devices.

Technical Specifications

Applications

• Balloon catheter inflation systems
• Angioplasty interventional procedures
• Medical inflation syringe devices
• Cardiovascular dilation systems
• Medical gas pressure control systems
• Minimally invasive surgical instruments
• Hospital interventional therapy equipment

Key Advantages

1. Stable 30 ATM High Pressure Monitoring

Designed for precise inflation control in balloon catheter and angioplasty applications.

2. EN 837-1 Standard Mechanical Design

Ensures reliable structure and consistent measurement performance in medical environments.

3. Compact 40mm Medical Dial

Space-saving design suitable for portable and integrated medical devices.

4. Radial Bottom Connection Structure

Easy installation in syringe inflation systems and compact medical equipment panels.

5. Brass Wetted Parts Construction

Provides stable compatibility with standard medical gas and inflation systems.

Working Principle (Bourdon Tube)

The Bourdon tube deforms elastically under internal pressure. This mechanical movement is converted into pointer rotation, allowing direct analog pressure reading without electrical power supply.

Installation Notes

• Use PTFE tape for threaded sealing
• Ensure correct radial mounting alignment
• Avoid over-tightening during installation
• Recommended for balloon inflation and medical gas systems only

FAQ

What is a balloon inflation pressure gauge used for?

It is used in angioplasty, catheter balloon inflation and medical syringe pressure control systems.

Is 30 ATM suitable for medical inflation devices?

Yes, 30 ATM is commonly used in interventional cardiology balloon inflation systems.

What is EN 837-1 standard?

It defines design, safety and accuracy requirements for mechanical pressure gauges.

What is the difference between radial and axial mounting?

Radial mounting connects from the bottom, axial connects from the rear for panel installation.
