Black Acrylic Lens Pressure Gauge 30 ATM 40mm Radial Plastic Case Medical Manometer EN 837-1

Product Overview

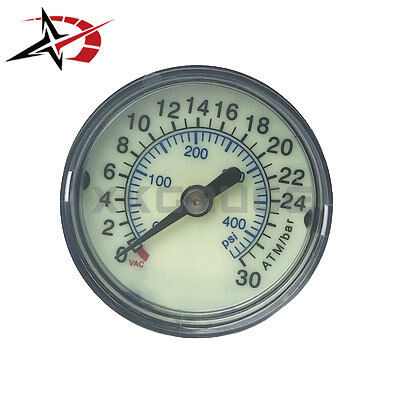

The black acrylic lens pressure gauge is a compact 40mm mechanical Bourdon tube instrument designed for medical inflation and low-volume high-pressure control systems. It is widely used in balloon inflation devices, angioplasty systems, and syringe-based medical pressure control equipment.

Built according to EN 837-1 standard, this gauge provides stable analog pressure measurement up to 30 ATM (≈30 bar), ensuring reliable performance in interventional and clinical environments.

The radial bottom connection structure combined with a lightweight plastic case makes it suitable for portable and space-limited medical devices.

Technical Specifications

Applications

• Balloon catheter inflation systems
• Angioplasty interventional procedures
• Medical syringe inflation devices
• Cardiovascular dilation systems
• Medical gas pressure control systems
• Minimally invasive surgical tools
• Hospital medical device integration

Key Advantages

1. 30 ATM Stable Pressure Measurement

Suitable for controlled inflation in medical balloon and catheter systems.

2. Lightweight Plastic Housing

Reduces device weight and improves cost efficiency for OEM medical equipment.

3. Clear Acrylic Viewing Window

Ensures fast and readable pressure indication during medical operation.

4. Compact 40mm Design

Ideal for integration into portable and space-constrained medical instruments.

5. EN 837-1 Standard Structure

Ensures consistent mechanical design and global compatibility for industrial and medical use.

Working Principle (Bourdon Tube)

The Bourdon tube deforms elastically when pressure is applied. This mechanical deformation is transferred to the pointer system, providing real-time analog pressure reading without electrical power.

Installation Notes

• Use PTFE sealing tape for threaded connections
• Ensure correct radial mounting alignment
• Avoid excessive tightening torque
• Suitable for medical inflation and gas control systems

FAQ

What is a black acrylic lens pressure gauge used for?

It is used in balloon inflation devices, angioplasty systems, and medical syringe pressure control applications.

Is plastic case pressure gauge reliable for medical use?

Yes, for low-cost and portable medical inflation systems where lightweight design is required.

What does 30 ATM mean?

30 ATM equals approximately 30 bar, suitable for medical balloon inflation control systems.

What is EN 837-1 standard?

It defines mechanical pressure gauge structure, accuracy and safety requirements.
