Axial Direction Mount 30 ATM Medical Pressure Gauge 40mm Luminous Inflation Syringe Manometer EN 837-1

Product Overview

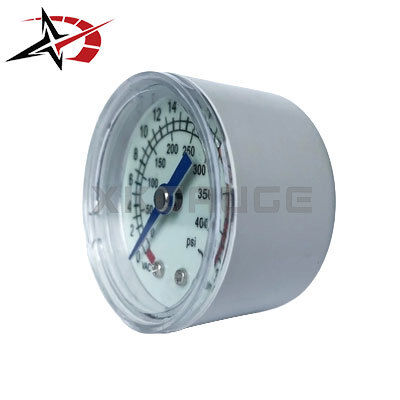

The axial mount 30 ATM medical pressure gauge is a compact mechanical Bourdon tube instrument designed for high-pressure medical inflation and pressure control systems. It features a luminous dial for improved readability in low-light environments and is widely used in balloon catheter inflation devices, angioplasty systems, and medical syringe pressure control equipment.

Manufactured in accordance with EN 837-1 standard, this gauge ensures stable mechanical performance and reliable pressure indication up to 30 ATM (approximately 30 bar), making it suitable for critical medical and interventional applications.

The axial rear connection design allows direct panel mounting, making it ideal for integrated medical device systems with limited installation space.

Technical Specifications

Applications

• Balloon catheter inflation systems
• Angioplasty pressure control devices
• Inflation syringe medical equipment
• Minimally invasive surgical devices
• Medical gas pressure regulation systems
• Hospital interventional therapy equipment
• High-pressure medical inflation tools

Key Advantages

1. 30 ATM High Pressure Stability

Designed for medical inflation systems requiring precise high-pressure control during interventional procedures.

2. Luminous Dial for Low-Light Operation

Improves readability in operating rooms and emergency environments with limited lighting conditions.

3. EN 837-1 Standard Mechanical Structure

Ensures consistent measurement accuracy and internationally recognized design reliability.

4. Axial Rear Mount Design

Ideal for panel integration in compact medical devices and syringe inflation systems.

5. Compact 40mm Medical-Grade Structure

Suitable for portable and space-limited medical equipment applications.

Working Principle (Bourdon Tube)

The Bourdon tube deforms under pressure changes. This mechanical deformation is transmitted to the pointer system, providing real-time analog pressure readings without the need for electrical power.

Installation Notes

• Ensure correct axial rear mounting alignment
• Use PTFE tape for threaded sealing
• Avoid over-tightening during installation
• Suitable for medical inflation and gas control systems only

FAQ

What is a 30 ATM medical pressure gauge used for?

It is used in balloon inflation systems, angioplasty devices, and medical syringe pressure control applications.

What is the benefit of a luminous dial?

It improves visibility in low-light environments such as operating rooms and emergency medical procedures.

What is EN 837-1 standard?

It defines design, safety, and accuracy requirements for mechanical pressure gauges.

What is the difference between axial and radial mount?

Axial mount connects from the rear for panel installation, while radial mount connects from the bottom for inline piping.
