Product Details:
|
| Deaign: | EN837-1 | Size: | 40mm |
|---|---|---|---|
| Mount: | Axial | Pressure Range: | 10 ATM, Customized |
| Case Material: | Plastic | Lens Material: | Acrylic |
| Bourton Tube: | Brass | Movement: | Brass |
| Socket: | Plastic | Color: | Yellow, White |
| High Light: | EN 837-1 Medical Pressure Gauge,10 ATM Medical Pressure Gauge,Clinical Manometer axial pressure gauge |
||

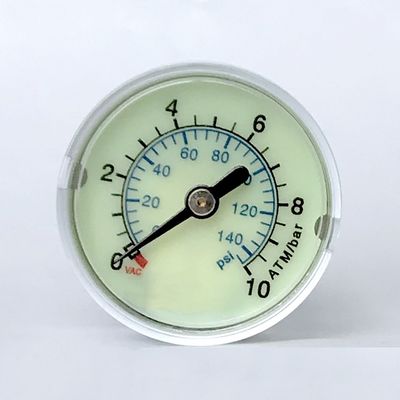

40mm Medical Pressure Gauge 10 ATM Plastic Connection Clinical Manometer
Description
The movement of the free end is non-linear as the same pressure increase at a Bourdon tube at rest has a greater effect on the displacement of the free end than when the tube has already been partially straightened. The reason for this is the resistance of the tube that increases when it becomes more straightened.
Applications
Medical Inflation Device
Inflation Device Kits
Balloon Inflation Device
Inflation Syringe
Inflate and deflate dilation balloon
Manual balloon catheter pump
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 10 ATM |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass, copper alloy |
|
Pressure element |
Brass |
| Movement | Brass |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Plastic |
| Window | Plastic |
| Unit |
ATM |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |
Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
