Product Details:
|
| Size: | 80mm, 3" | Mount: | Center Back |
|---|---|---|---|
| Pressure Range: | 25 Bar Or Customized | Case Material: | Black Steel |
| Lens Material: | PC | Bourton Tube: | Phosphor Bronze |
| Movement: | Copper Alloy | Dial: | White Background, Black Lettering |
| Accuracy: | 1.0 | Deaign: | EN837-1 |
| High Light: | Phosphor Bronze Utility Pressure Gauge,80mm Manometer Utility Pressure Gauge,25 bar high pressure gauge |
||

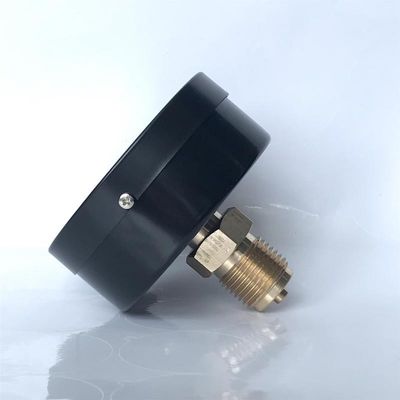

3" 80mm Manometer 25 bar High Pressure Cleaning Utility Pressure Gauge
Description
The key component of analog gauges is the “tube” alluded to in the previous section. These types of gauges contain some type of inner, elastic chamber that is somehow connected to the pressure being measured – and thus deforms, or otherwise moves, as the pressure acting on it changes. Through an intricate system of gears (known as the movement), the chamber within an analog gauge is able to translate pressure-induced motion into the movement of a needle across a scale.
Applications
For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.
Pneumatics
Heating and air-conditioning technology
Medical engineering
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 400 bar
|
Design |
EN 837-1 |
|
Nominal size |
80mm, 3" |
|
Accuracy |
1.0 |
| Pressure range | 25 bar (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass |
|
Pressure element |
Brass, C-type or helical type
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium, white, with pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | Black steel |
| Window | PC |
| Options |
Other process connection |
Dimensions
Lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
Back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
