Product Details:
|
Deaign: | EN837-1 | Size: | 63mm |
---|---|---|---|
Mount: | Panel Mount | Pressure Range: | -760 MmHg, Vacuum |
Case Material: | Steel | Lens Material: | PC |
Bourton Tube: | Phosphor Bronze | Movement: | Copper Alloy |
Dial: | Aluminum | Color: | Black |
High Light: | 63mm Vacuum Pressure Gauge,760 mmHg Vacuum Pressure Gauge,Brass Connection u clamp pressure gauge |

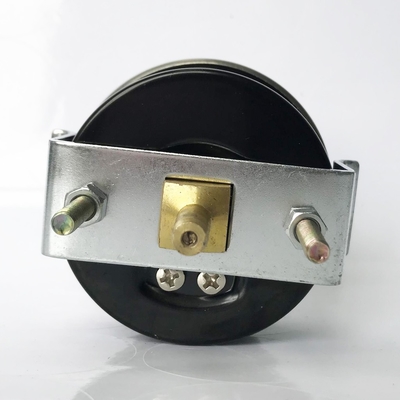

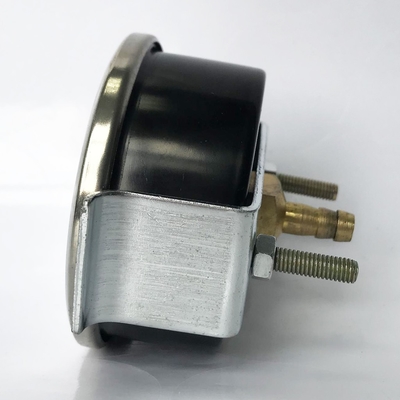

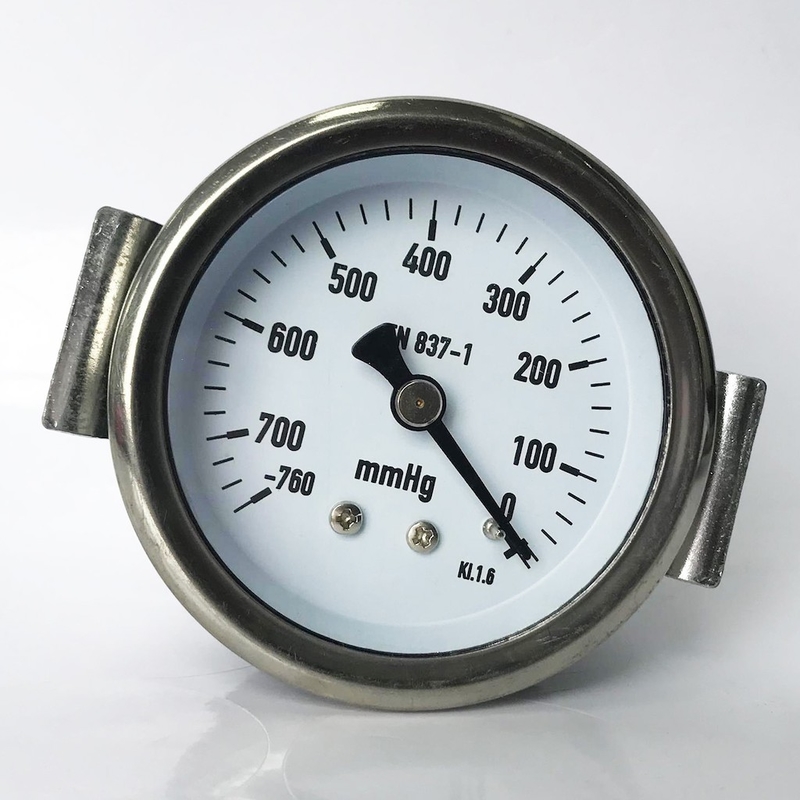

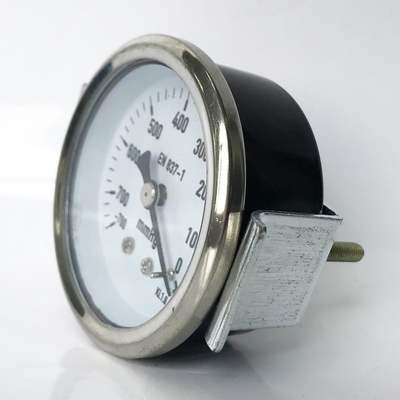

63mm 2.5" -1 bar Black Painted Steel Case Brass Connection Vacuum Pressure Gauge
Description
When choosing a pressure gauge for a specific application, several factors should be taken into account. Some of the major considerations include the size of the dial, the size of the connection or port the gauge will be using, units of measurement that the gauge is capable of (e.g. PSI, mmHg, PA, etc.), compatibility of gauge material with the operating conditions (including temperature, corrosiveness, etc.). and whether the gauge should be dry or liquid filled (the latter tends to have longer life due to shock absorption).
Applications
Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.
Special features
Reliable and cost-effective
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Design |
EN 837-1 |
Nominal size |
63mm |
Accuracy |
2.5, 1.6 |
Pressure range | -760 mmHg vacuum (customized) |
Pressure limitation |
Steady: 3/4 x full scale value |
Permissible temperature |
Ambient: -20 ... +60 °C |
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection |
Brass |
Pressure element |
Brass, C-type or helical type |
Movement | Brass |
Dial | Aluminium, white, with pointer stop pin Black/red lettering |
Pointer | Aluminium |
Case | Steel |
Window | Plastic, glass |
Options |
Other process connection |
Dimensions
lower mount (radial)
Dial Size | Dimensions in mm | Weight in kg | |||||
a | b | D | G | h | SW | ||
40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |
back mount (axial)
Dial Size | Dimensions in mm | Weight in kg | ||||
b1 | b2 | D | G | SW | ||
40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
