Product Details:
|
| Deaign: | EN837-1 | Size: | 63mm |
|---|---|---|---|
| Mount: | Bottom, Radial | Pressure Range: | 500 KPa Or Customized |
| Case Material: | Painted Steel | Lens Material: | Instruments Glass, PC |
| Bourton Tube: | Brass | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | 500 kPa Tyre Pressure Gauge,Schrader Valve Tyre Pressure Gauge,63mm heavy duty tire pressure gauge |
||

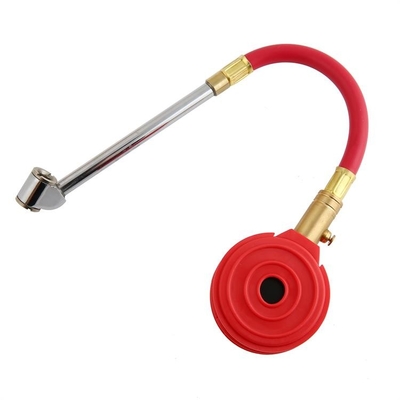

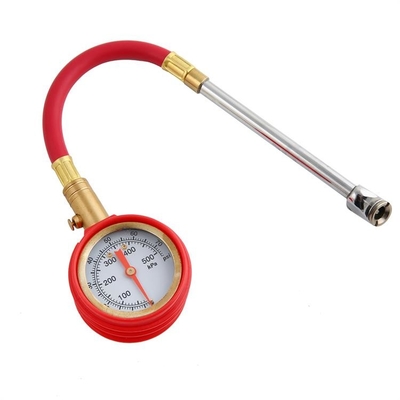

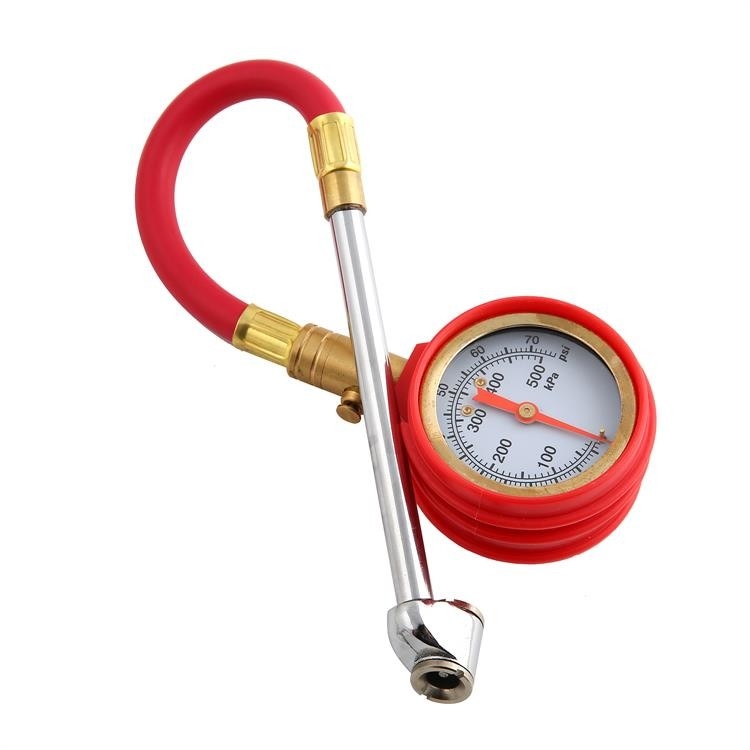

2.5" 500 kPa Red Hose Heavy Duty Mechanical Car Tyre Pressure Gauge with Schrader Valve
Description
This heavy duty mechanical tire gauge is calibrated to ANSI B40.1 Grade B (2%) international accuracy standard so you get a precise, accurate pressure reading every time you use it. t features a steel and brass construction with an extended 5mm chuck tip, so you get a great seal with no air leakage. This robust and durable precision automotive tool is also surrounded by a rubber cover, so it is protected from drops and is easy to grip.
Special features
Mechanical design, no batteries needed
Reliable performance, robust body with rubber cover
360 degree swive, easy to operate
Durable air valve button
|
Design |
EN 837-1 |
|
Nominal size |
63mm |
|
Accuracy |
2.5 |
| Pressure range | 70 psi (customized) |
|
Working pressure |
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value |
| Usage circumstances |
Indoor, outdoors |
|
Ingress protection |
IP66 |
|
Temperature effect |
When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value |
|
Process connection |
Painted steel |
|
Pressure element |
Bourdon tube |
| Movement | Brass |
| Dial | Aluminium |
| Pointer | Aluminium |
| Case | Painted steel |
| Window | PC |
| Unit |
bar, psi, kg/cm2, kPa, MPa |
| Thread | Customized |
| Options | Other process connections |
Operating Instructions
Use the vehicle's recommended pressure, do not exceed the "max pressure" figure found on the tire sidewall.
Check pressure when tires are cold and have sat for at least one hour.
Removing cap from inflation valve, place the gauge chuck firmly onto tire valve stem and press down evenly. If air escapes, apply more pressure until air stops escaping.
Remove gauge from valve stem to read tire pressure.
If tire pressure is too high, refit the tire pressure gauge to valve stem then gently press pressure release button until recommended pressure is reached.
If tire pressure is low, inflate to the recommended pressure then recheck.
Store tire pressure gauge in a safe, dust free area.
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
