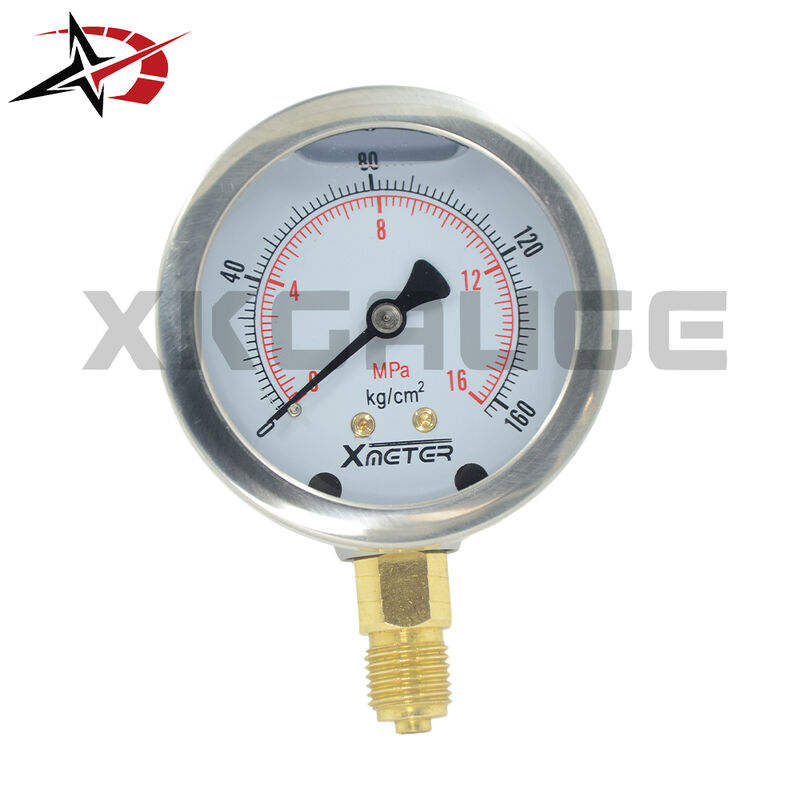

Product Introduction

With a measuring range of 0-16MPa (0-160kg/cm²), it is ideal for medium and high-pressure applications requiring dependable operation, enhanced readability, and long service life.

The internal glycerin filling absorbs vibration and mechanical shock, reducing pointer flutter and improving measurement stability while protecting the internal movement from premature wear.

Key Features

Stainless Steel Construction

• Corrosion-resistant stainless steel housing
• Suitable for demanding industrial environments
• Enhanced durability and service life
• Professional industrial-grade appearance

Glycerin Filled Design

• Reduces pointer vibration
• Improves reading stability
• Protects internal movement
• Suitable for pulsating pressure systems

16MPa Pressure Measurement

• Pressure range: 0-16MPa
• Equivalent to 0-160kg/cm²
• Suitable for hydraulic equipment
• Reliable pressure monitoring solution

Standard G1/4 Connection

• Widely accepted industrial thread
• Easy installation
• Excellent compatibility
• Ideal for OEM machinery integration

63mm Dial Size

• Compact and easy-to-read design
• Space-saving installation
• Suitable for machinery panels
• Common industrial standard size

Technical Specifications

How It Works

This pressure gauge operates using a Bourdon tube sensing element. As pressure enters through the G1/4 connection, the Bourdon tube flexes in proportion to the applied pressure.

The movement is transferred through a mechanical linkage system, causing the pointer to rotate and display the pressure value on the dial scale.

The glycerin filling dampens vibration and pressure pulsation, ensuring stable readings and improved accuracy in dynamic operating environments.

Applications

Hydraulic Systems

• Hydraulic pumps
• Hydraulic cylinders
• Hydraulic power units
• Hydraulic presses

Industrial Machinery

• Manufacturing equipment
• Packaging machinery
• Process machinery
• Automation systems

Air Compressor Systems

• Compressor pressure monitoring
• Pneumatic equipment
• Compressed air systems
• Air treatment equipment

Water Treatment Equipment

• Filtration systems
• Pressure control equipment
• Pump stations
• Water supply systems

Construction Equipment

• Excavators
• Loaders
• Heavy machinery
• Mobile hydraulic equipment

FAQ

What is the advantage of glycerin filling?

Glycerin reduces vibration effects, stabilizes readings, and protects internal components from wear.

Is this gauge suitable for hydraulic systems?

Yes. The 0-16MPa range is commonly used in hydraulic equipment and fluid power applications.

What connection type does this gauge use?

The standard process connection is G1/4.

Is the housing corrosion resistant?

Yes. The stainless steel case provides excellent resistance to corrosion and harsh industrial environments.
