Product Overview

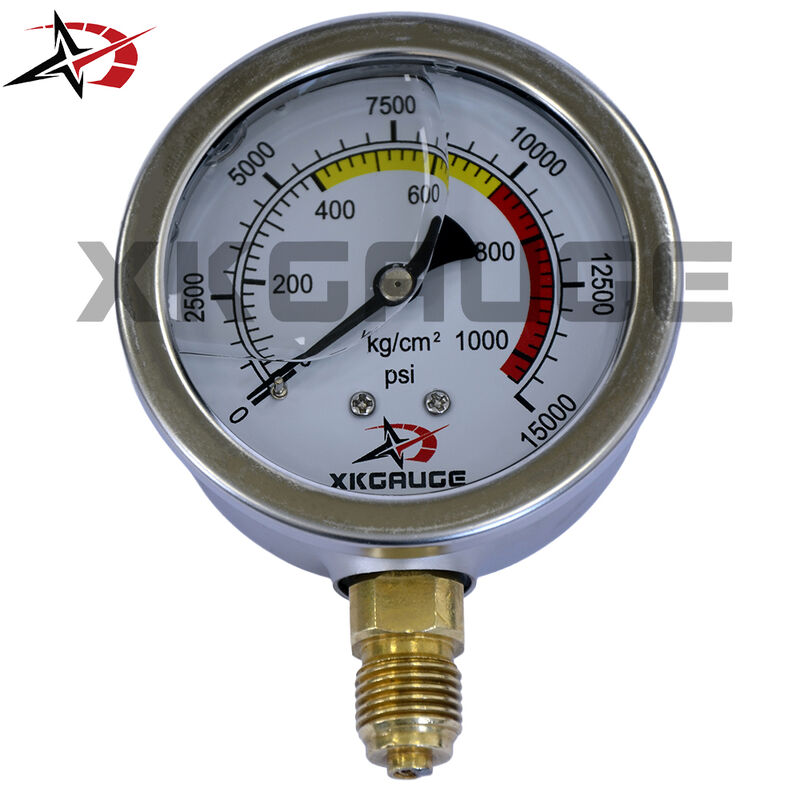

The 63mm Radial Liquid Filled Pressure Gauge is engineered for reliable pressure monitoring in hydraulic systems, industrial equipment, fluid power applications, testing machinery, and high-pressure process systems.

Featuring a compact 63mm dial, radial mount design, brass process connection, and liquid-filled construction, this pressure gauge delivers stable readings even under severe vibration, pulsation, and pressure shock conditions.

With a measuring range of 0-1000 kg/cm² (0-15000 PSI), it is particularly suitable for ultra-high-pressure hydraulic applications requiring dependable performance and long service life.

Key Features

Ultra High Pressure Measurement

• Pressure range up to 15000 PSI
• 0-1000 kg/cm² measurement capability
• Suitable for hydraulic systems
• Reliable pressure monitoring under extreme conditions

Liquid Filled Construction

• Reduces pointer flutter
• Improves measurement stability
• Minimizes vibration effects
• Extends instrument service life

Brass Connection Design

• Excellent sealing performance
• Strong mechanical durability
• Reliable hydraulic compatibility
• Long-term corrosion resistance

Compact 63mm Dial

• Clear pressure indication
• Compact installation size
• Suitable for OEM equipment
• Easy equipment integration

Radial Mount Configuration

• Bottom connection design
• Convenient installation
• Suitable for pumps and machinery
• Widely used in hydraulic applications

Technical Specifications

Working Principle

The pressure gauge utilizes a Bourdon tube sensing element to convert fluid pressure into mechanical movement.

1. Pressure enters the gauge through the brass connection.
2. The Bourdon tube expands proportionally to the applied pressure.
3. The motion is transmitted through a precision gear mechanism.
4. The pointer rotates across the calibrated scale.
5. The pressure value is displayed in real time.

Applications

Hydraulic Systems

• Hydraulic pumps
• Hydraulic cylinders
• Hydraulic power units
• Hydraulic presses

Industrial Machinery

• Manufacturing equipment
• Automation systems
• Fluid power machinery
• Process control equipment

Pressure Testing Equipment

• Hydraulic test benches
• Pressure calibration systems
• Performance testing machines
• Pressure verification equipment

Construction Machinery

• Excavators
• Loaders
• Cranes
• Heavy-duty hydraulic equipment

Oil & Gas Industry

• Hydraulic control systems
• Pumping stations
• Fluid transfer equipment
• Industrial process equipment

FAQ

Can this gauge be used for hydraulic systems?

Yes. The 15000 PSI range is designed for high-pressure hydraulic applications.

What does radial mount mean?

Radial mount means the process connection is located at the bottom of the gauge.

What industries commonly use this product?

Hydraulic equipment, industrial automation, oil & gas, construction machinery, and pressure testing industries.
