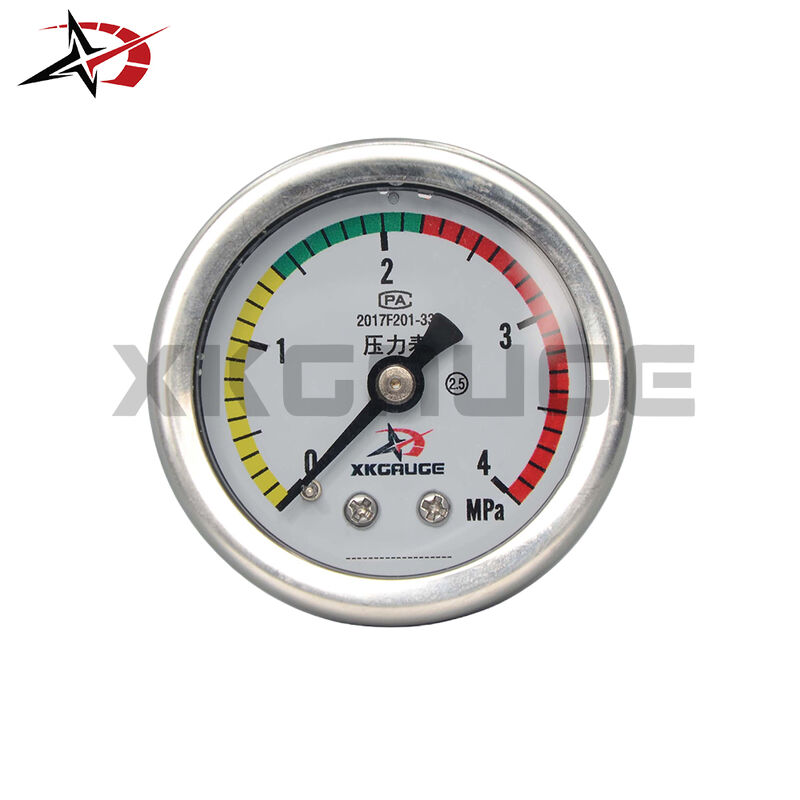

4MPa Vibration Resistant Pressure Gauge Back Connection for Lubrication Systems

Product Overview

The 4MPa Vibration Resistant Pressure Gauge is specifically designed for pressure monitoring in lubrication systems, grease pumps, oil circulation systems, and industrial machinery. Featuring a back connection design, this gauge offers convenient installation on control panels, lubrication stations, and equipment dashboards.

Technical Specifications

Key Features

Vibration Resistant Construction

Designed to reduce pointer instability caused by equipment vibration and pressure fluctuations, ensuring clear and reliable readings.

Specialized for Lubrication Systems

Optimized for monitoring pressure in centralized lubrication systems, grease delivery units, and oil circulation equipment.

Back Connection Mounting

The rear connection design enables neat installation within machine panels and industrial control systems.

Reliable Mechanical Operation

The Bourdon tube measuring mechanism provides dependable pressure indication without requiring electrical power.

Industrial Grade Durability

Suitable for long-term use in manufacturing plants, machine tools, heavy equipment, and automated production environments.

Working Principle

The pressure gauge operates using a Bourdon tube sensing element. As pressure enters the gauge, the Bourdon tube deforms proportionally to the applied pressure.

This movement is transferred through a precision linkage mechanism that rotates the pointer across the dial scale, displaying the current system pressure.

The vibration-resistant design helps minimize the influence of external mechanical vibrations, resulting in more stable readings and improved measurement reliability.

Applications

• Centralized Lubrication Systems
• Automatic Lubrication Equipment
• Grease Pump Systems
• Oil Circulation Systems
• CNC Machine Tools
• Manufacturing Equipment
• Industrial Automation Machinery
• Packaging Equipment
• Mining Machinery
• Steel Processing Equipment
• Conveyor Systems
• Industrial Maintenance Systems

FAQ

What is a vibration resistant pressure gauge?

A vibration resistant pressure gauge is designed to provide stable readings in environments where machinery vibration or pressure pulsation is present.

Why is pressure monitoring important in lubrication systems?

Pressure monitoring helps ensure lubricant is delivered correctly throughout the system and allows early detection of pump or pipeline issues.

Can this gauge be used with automatic lubrication systems?

Yes. It is suitable for centralized, progressive, and automatic lubrication systems used in industrial machinery.
