Product Details:
|
| Size: | 63mm | Mount: | Radial |
|---|---|---|---|
| Pressure Range: | 160 Bar Or Customized | Case Material: | 316 SS, 304 SS |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 1.6 | Liquid: | Silicone Oil, Glycerin |
| High Light: | 2300 psi 2.5 inch pressure gauge,160 bar 2.5 inch pressure gauge,Flange fuel pressure gauge liquid filled |
||

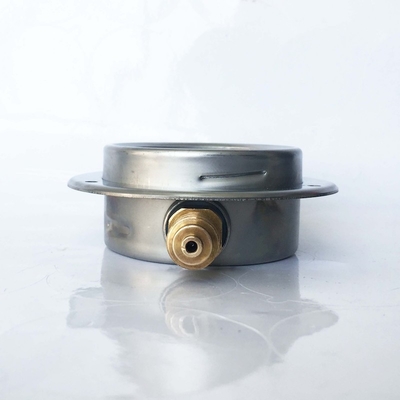

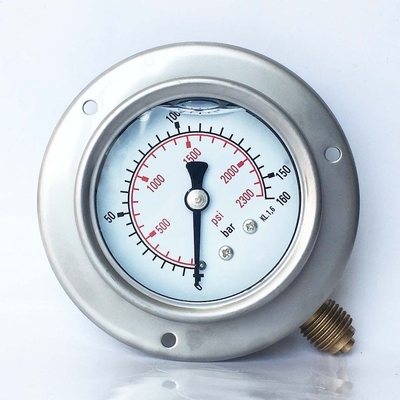

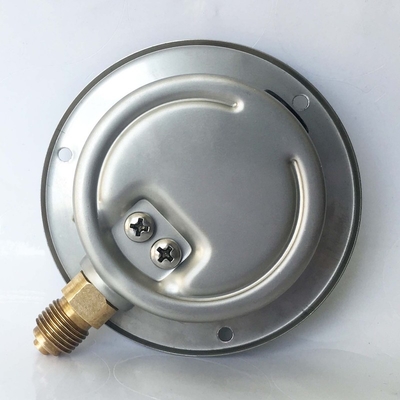

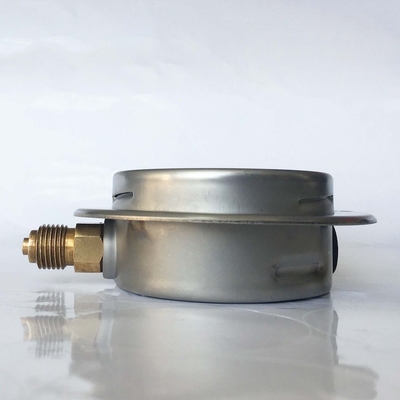

2.5 Inches 160 bar & 2300 psi Manometer 1/4" NPT Flange Mount Liquid Filled Pressure Gauge
Description
Liquid-filled pressure gauges provide a number of advantages:
1. The liquid absorbs vibration and pressure spikes
2. The dampening action of the liquid enables the operator to take readings during conditions of rapid dynamic loading and vibration.
3. The liquid lubricates all moving elements, dramatically reducing wear in the movement
4. Because most liquid-filled gauges are filled with non-aqueous liquid and hermetically sealed, they perform in corrosive environments and are immune to moisture penetration and icing, and shock effects are lessened.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | Acc.1.6 |
| Pressure range | 160 bar (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/4 G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
