| Size: | 63mm | Mount: | Panel |
|---|---|---|---|
| Pressure Range: | 250 Kg/cm2 Or Customized | Case Material: | 316 SS, 304 SS |
| Lens Material: | Instrument Glass | Bourton Tube: | Phosphor Bronze |
| Movement: | Brass | Dial: | Aluminum |
| Accuracy: | 1.6 | Liquid: | Silicone Oil, Glycerin |
| High Light: | Brass Wetted Liquid Filled Pressure Gauge,250 kg/cm2 Liquid Filled Pressure Gauge,1/4 NPT flange mount pressure gauge |
||

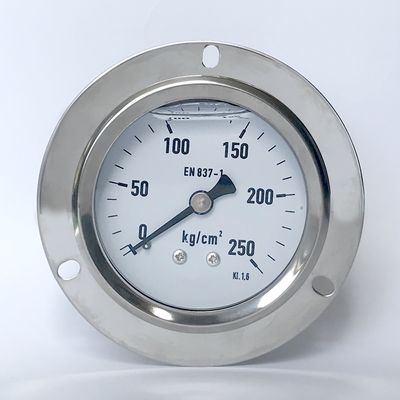

2.5 Inches 250 kg/cm2 Brass Wetted Parts Manometer 1/4" NPT Flange Mount Liquid Filled Pressure Gauge
Description
The type of liquid used to fill the pressure gauge varies with the application. Although pure glycerine provides the best performance in most applications, each has its own requirements. If icing is a problem, use gauges filled with silicone oil or other comparable liquids. If the system has electric accessories such as contacts, use insulating oils, and if extreme temperature fluctuations are expected, use silicone oils. The higher the liquid viscosity, the greater it’s dampening capacity.
Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar
Design | EN 837-1 |
Nominal size | 63mm |
Accuracy | Acc.1.6 |
| Pressure range | 250 kg/cm2 (customized) |
Pressure limitation | 40mm, 50mm, 63mm: |
| Permissible temperature | Ambient: -20 ... +60 °C |
Ingress protection | IP65 |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, C-type or helical type |
| Movement | Brass |
| Dial | Aluminium, colorful, with pointer stop pin Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Ring | Stainless steel |
| Window | Plastic, glass, safety glass |
| Unit | bar, psi, kg/cm2, kPa, MPa |
| Thread | 1/4 G, BSP, PT, BSPT, NPT |
| Options | Other process connection thread Surface mounting flange Mounting bracket |
Dimensions
| Size | Dimensions in mm | Weight in kg | |||||||||
| a | b | b2 | D1 | D2 | e | f | G | h | SW | ||
| 50 | 12 | 30 | 55 | 55 | 50 | 5.5 | - | 1/4" | 48 | 14 | 0.15 |
| 63 | 13 | 32 | 56 | 68 | 62 | 6.5 | - | 1/4" | 54 | 14 | 0.21 |
| 100 | 15.5 | 48 | 81.5 | 107 | 100 | 8 | 30 | 1/2" | 87 | 22 | 0.80 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
