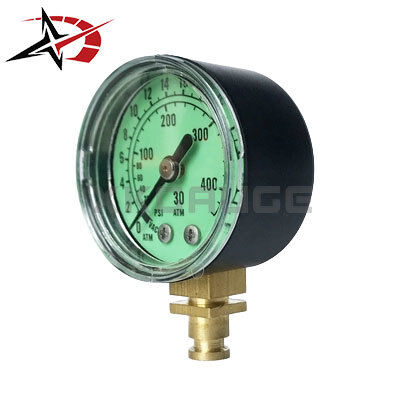

30 ATM Radial Medical Pressure Gauge 40mm Brass Connection EN 837-1 Manometer

Product Overview

The 30 ATM radial medical pressure gauge is a mechanical Bourdon tube instrument designed for high-precision pressure monitoring in medical inflation and pressure control systems. It is widely used in balloon catheter inflation devices, angioplasty systems, medical injection pumps, and laboratory pressure monitoring equipment.

Built according to EN 837-1 standard, this gauge provides stable analog pressure readings up to 30 ATM (approximately 30 bar), ensuring reliable performance in critical medical environments where accuracy and mechanical stability are required.

The compact 40mm dial and radial bottom connection structure make it suitable for space-limited medical device integration, while brass wetted parts ensure stable gas compatibility in standard medical applications.

Technical Specifications

Applications

• Balloon catheter inflation systems
• Angioplasty medical pressure control devices
• Medical injection and inflation pumps
• Oxygen regulation and medical gas systems
• Laboratory pressure monitoring equipment
• Minimally invasive surgical devices
• Medical pressure calibration systems

Key Advantages

1. High Pressure Stability (30 ATM)

Designed for medical inflation systems requiring stable and repeatable high-pressure control.

2. EN 837-1 Mechanical Standard

Manufactured according to international pressure gauge standard ensuring consistent measurement structure.

3. Bourdon Tube Technology

Mechanical sensing system provides reliable operation without electrical power supply.

4. Compact 40mm Dial Design

Ideal for integration into compact medical instruments and handheld inflation devices.

5. Brass Connection Structure

Provides stable compatibility with medical gas and standard pneumatic systems.

Working Principle

The Bourdon tube inside the gauge deforms elastically when pressure is applied. This deformation is converted into rotational movement of the pointer, allowing direct analog pressure indication without electronic components.

Installation Notes

• Use PTFE sealing tape for threaded connection
• Ensure radial bottom mounting alignment
• Avoid over-tightening during installation
• Recommended for medical inflation systems and gas control devices

FAQ

What is a 30 ATM medical pressure gauge used for?

It is used in balloon inflation devices, angioplasty systems, and medical gas pressure control applications.

Is this gauge suitable for medical use?

Yes, it is commonly used in medical inflation and pressure monitoring systems with non-corrosive gases.

What does EN 837-1 standard mean?

It defines mechanical pressure gauge design, accuracy and safety requirements for industrial and medical applications.

What is the difference between radial and axial mounting?

Radial gauges have bottom connection for inline installation, while axial gauges have rear connection for panel mounting.
