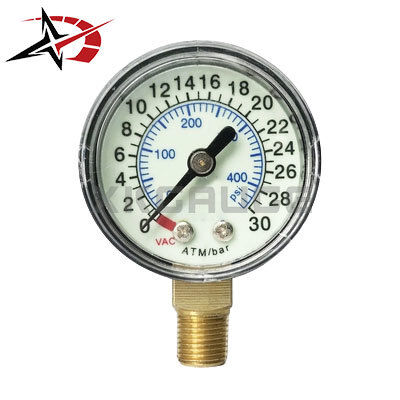

Plastic Case Medical Pressure Gauge 30 ATM 40mm Luminous Dial Radial EN 837-1 Balloon Inflation Manometer

Product Overview

This plastic case medical pressure gauge is designed for balloon inflation devices and medical pressure control systems requiring stable monitoring up to 30 ATM (≈30 bar). It features a compact 40mm dial, luminous pointer display, and radial bottom connection structure for easy integration into medical equipment.

Manufactured in compliance with EN 837-1 standard, the gauge uses a Bourdon tube measuring system to ensure stable mechanical pressure indication without external power supply. It is widely applied in angioplasty, catheter balloon inflation, and clinical medical instrumentation.

The combination of a lightweight plastic housing and acrylic lens makes it suitable for OEM medical devices where cost efficiency, visibility, and compact size are required.

Technical Specifications

Applications

• Balloon catheter inflation systems
• Angioplasty interventional procedures
• Medical syringe inflation devices
• Cardiovascular dilation systems
• Clinical pressure monitoring systems
• Hospital catheterization laboratory equipment
• Minimally invasive surgical instruments

Key Advantages

1. Stable 30 ATM Pressure Measurement

Designed for controlled inflation in balloon catheter and medical intervention systems.

2. Luminous Dial for Low-Light Environments

Ensures clear visibility in operating rooms and emergency medical conditions.

3. Lightweight Plastic Case Design

Reduces device weight and supports cost-effective OEM manufacturing.

4. Compact 40mm Radial Structure

Ideal for space-limited medical devices and portable inflation systems.

5. EN 837-1 Mechanical Standard

Ensures stable, reliable and internationally recognized measurement performance.

Working Principle

The Bourdon tube inside the gauge deforms when pressure is applied. This mechanical deformation is transferred to the pointer system, providing real-time analog pressure readings without electricity or sensors.

FAQ

What is a 30 ATM medical pressure gauge used for?

It is used in balloon inflation devices, angioplasty systems, and medical pressure control applications.

What does radial mounting mean?

Radial mounting means the connection is located at the bottom of the gauge for direct system integration.

What is the benefit of a luminous dial?

It improves readability in low-light clinical environments such as operating rooms.

Is EN 837-1 important for medical pressure gauges?

Yes, it ensures mechanical safety, accuracy, and international standard compliance.
