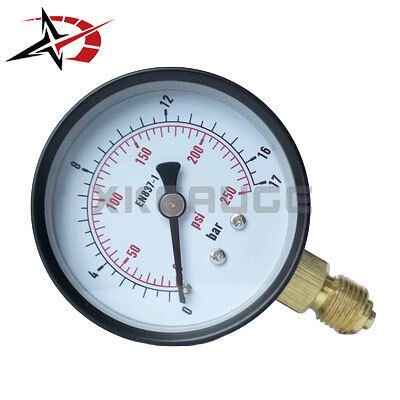

60mm Radial Pressure Gauge, 0-17 Bar / 250 PSI, Bottom Mount
This 60mm radial pressure gauge is designed for general pressure measurement and equipment instrumentation. It features a bottom-mount configuration and dry manometer design, providing a compact pressure indication solution for compatible mechanical and industrial equipment.
Technical Specifications
| Parameter |
Specification |
| Product Type |
Radial Pressure Gauge / Dry Manometer |
| Dial Size |
60 mm |
| Pressure Range |
0-17 bar / 250 psi |
| Configuration |
Radial |
| Mounting Type |
Bottom Mount |
| Gauge Type |
Dry Type |
Applications
- Industrial equipment pressure measurement
- Mechanical equipment monitoring
- General pressure indication
- Industrial instrumentation
- Equipment pressure monitoring
- Pressure measurement systems
Product Advantages
60mm Dial for Compact Pressure Indication
The 60mm dial provides a compact format for pressure indication while offering a practical display size for compatible equipment and instrumentation.
0-17 Bar / 250 PSI Pressure Range
The specified pressure range covers 0-17 bar and is identified with a 250 psi scale. The required pressure range should be compared with the actual operating pressure of the application before selecting the gauge.
Radial Configuration
The radial configuration is designed for applications where the pressure connection is arranged below the gauge. The mounting position should be checked against the equipment layout before installation.
Bottom-Mount Design
The bottom-mount configuration provides a straightforward installation option for equipment and piping arrangements where the pressure connection is located at the lower side of the gauge.
Dry Manometer Design
This model uses a dry pressure gauge configuration. It is intended for pressure indication applications where a dry gauge design is appropriate for the operating environment.
Pressure Range Selection
A suitable pressure gauge range should cover the normal operating pressure of the system while providing an appropriate readable scale. This model is specified with a 0-17 bar / 250 psi range, so the actual system pressure should be checked before selection.
Frequently Asked Questions
What is the dial size of this pressure gauge?
The gauge has a 60mm dial.
What is the pressure range?
The product is specified as 0-17 bar / 250 psi. The exact scale markings should be confirmed against the product datasheet or gauge face before ordering.
What type of pressure gauge is this?
It is a radial pressure gauge with a dry manometer design.
What mounting configuration does it use?
The gauge uses a bottom-mount configuration.
Where can this 60mm pressure gauge be used?
It can be considered for compatible industrial equipment, mechanical equipment, instrumentation and general pressure monitoring applications where the specified pressure range and mounting configuration are appropriate.
