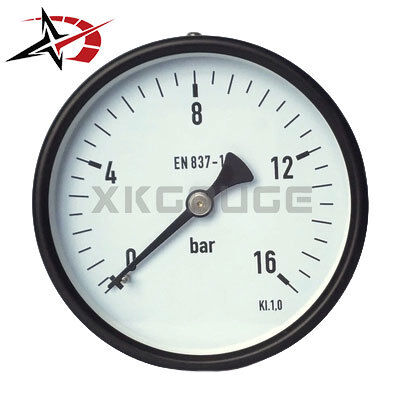

100mm Radial High Accuracy Pressure Gauge, 0-16 Bar Dry Bourdon Tube Gauge
The 100mm radial pressure gauge is a mechanical Bourdon tube pressure gauge designed for local pressure indication in industrial equipment and fluid systems. With a 100mm dial and 0-16 bar pressure range, it provides a larger display format for applications where pressure readings need to be checked directly at the installation point.
This gauge features a radial connection configuration, also described as bottom connection or bottom-entry pressure gauge. This design allows the pressure connection to be positioned below the dial for installation on compatible piping, machinery, and pressure systems.
As a dry Bourdon tube gauge, the instrument uses a mechanical sensing element and pointer indication rather than electronic display. The Bourdon tube responds to applied pressure, and its mechanical movement is transferred to the pointer to indicate measured pressure on the dial.
Key Specifications
| Product Type |
Mechanical Pressure Gauge |
| Model |
Y-100 |
| Dial Diameter |
100 mm |
| Pressure Range |
0-16 bar |
| Connection Type |
Radial |
| Gauge Type |
Dry Pressure Gauge |
| Sensing Element |
Bourdon Tube |
| Display |
Analog Pointer and Dial |
| Connection Thread |
Brass |
| Case Material |
Black Painted Steel Case |
Typical Applications
Industrial Machinery
The 100mm pressure gauge is used for local pressure monitoring on industrial machinery and mechanical equipment where direct analog pressure indication is required.
- Industrial machinery
- Mechanical equipment
- Pressure systems
- Process equipment
- Fluid handling equipment
- General industrial installations
Pumps and Compressors
Pressure gauges are commonly installed on pumps and compressors to provide local indication of system pressure.
- Pump pressure monitoring
- Compressor systems
- Air pressure systems
- Fluid circulation equipment
- Pressure control assemblies
The suitability of the gauge for a specific medium should be verified according to the wetted materials and technical specification.
Piping and Fluid Systems
The radial connection configuration is used for pressure indication on compatible piping and fluid systems.
- System pressure
- Measuring medium
- Connection thread
- Operating temperature
- Required accuracy
- Installation position
Product Advantages
100mm Large Dial
The 100mm dial provides a larger viewing area for local pressure indication, suitable for industrial equipment where compact gauges are insufficient for required viewing distances.
0-16 Bar Measurement Range
The 0-16 bar range provides a defined measurement span for systems operating within specified pressure conditions.
Radial Connection
The radial connection provides bottom-entry installation configuration for compatible equipment and piping systems.
Dry Mechanical Design
The dry mechanical configuration provides direct analog pressure indication without requiring electronic display for basic local pressure reading.
Frequently Asked Questions
What is a radial pressure gauge?
A radial pressure gauge has its pressure connection arranged at the lower or radial side of the instrument. It is commonly used for direct installation on pressure piping and equipment.
What is a 0-16 bar pressure gauge used for?
A 0-16 bar pressure gauge indicates pressure within a 0 to 16 bar measuring range, subject to the gauge's specified operating conditions and accuracy requirements.
What is a dry Bourdon tube pressure gauge?
A dry Bourdon tube pressure gauge uses a mechanical Bourdon tube sensing element without liquid filling inside the case for damping. Actual suitability depends on application and product specification.
Why use a 100mm pressure gauge?
A 100mm pressure gauge provides a larger dial format for local pressure indication, useful when operators need to read pressure from greater viewing distances or when larger scales are preferred.
