Product Details:
|
| Deaign: | EN837-3 | Size: | 50mm |
|---|---|---|---|
| Mount: | Back, Axial | Pressure Range: | -20...+80 MmH2O Or Customized |
| Case Material: | Painted Steel, Black Steel | Lens Material: | Acrylic |
| Bellows: | Phosphor Bronze | Movement: | Brass |
| Dial: | Aluminum | Accuracy: | 2.5, 1.6 |
| High Light: | 50mm Low Capsule Pressure Gauge,80 mmH2O Capsule Pressure Gauge,Brass Internals vacuum pressure gage |
||

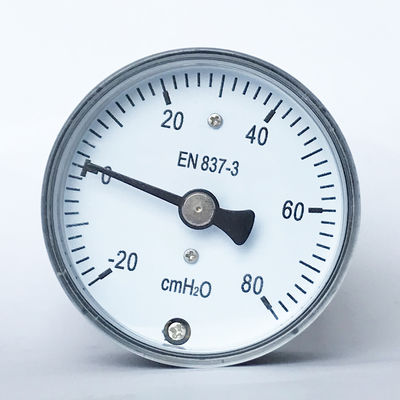

50mm Low Pressure Capsule Pressure Gauge 80 mmH2O Brass Internals Bellows Manometer
Description
The model M08 pressure gauges are used in messuring very low pressure.
Applications
Low pressure gauge for applications in a controlled environment
Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring
For gaseous, dry and non-aggresive media
Special features
Front zero adjustment
Special connections on request
Scale ranges from 0/10 InWC (25 mbar)
Design | EN 837-3 |
Nominal size | 50mm |
Accuracy | ± 1.6 of full scale value |
| Pressure range | 80 mmH2O 80 mmWC (customized) |
| Standard ranges | 2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar) |
| Standard scales | InH2O/mmH2O |
Pressure limitation | Steady: full scale value |
Permissible temperature | Ambient: -20 ... +60 °C |
Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span |
Process connection | Brass |
Pressure element | Brass, copper alloy |
| Movement | Brass |
| Dial | Aluminium, white, black lettering |
| Pointer | Aluminium |
| Case | Black steel, painted steel |
| Window | Acrylic, glass |
| Zero adjustment | At the front |
| Options | Other process connection |
Dimensions
| Size | Dimension in inches | Weight in LBS | |||||||
| a | b | b1 | b2 | D | G | h | SW | ||
| 2” | - | - | 1.10 | 1.89 | 50 | 1/4”NPT | - | 0.55 | 0.20 |
| 2½” | 0.37 | 1.57 | 1.44 | 2.19 | 63 | 1/4”NPT | 2.00 | 0.55 | 0.44 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
FAQ
Q1. Can I have a sample order for pressure gauge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 15 days for Sample preparing, 25 working days for mass production.
Q3. Do you have any MOQ limit for pressure gauge order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pressure gauge?
A: Firstly let us know your requirements or application. Provide Model, Dial size, Pressure range, Process connection, Options.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on pressure gauge product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 12 months to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.04%.
Secondly, during the guarantee period, we will send new manometers with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
